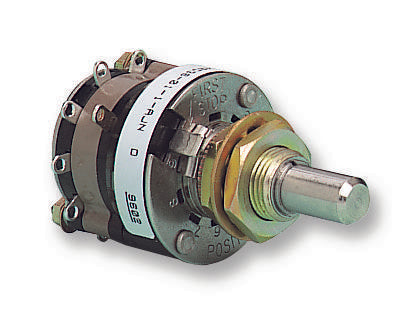

GRAYHILL - 42D36-01-1-AJN - Rotary Switch, 10 Position, 1 Pole, 36 °, 1 A, 115 V, 42
- No. of Switch Positions: 10 Position
- No. of Poles: 1 Pole
- Angle of Throw: 36°
- Contact Current AC Max: 1A
- Contact Voltage AC Max: 115V
- Product Range: 42 Series
- Illumination: Non Illuminated
- Contact Current DC Max: 1A
- Contact Voltage DC Max: 115V
- SVHC: No SVHC (27-Jun-2018)
- Angle: 36°
- Approval Bodies: CSA, UL
- Behind Panel Depth: 26mm
- Contact Configuration: SPDT
- Contact Current @ Contact Voltage AC Max: 1A
- Contact Current @ Contact Voltage DC Max: 1A
- Contact Current Rating: 10A
- Contact Resistance: 50mohm
- External Diameter: 25.4mm
- Indexing Angle: 36°
- Insulation Resistance: 1000Mohm
- No. of Mechanical Operations: 100000
- No. of Positions: 10Ways
- Shaft Diameter: 6.35mm
- Spindle Diameter: 6.35mm
- Spindle Length: 11.1mm
- Switch Operation: Off-On
- Thread Size: 3/8 - 32 NEF
