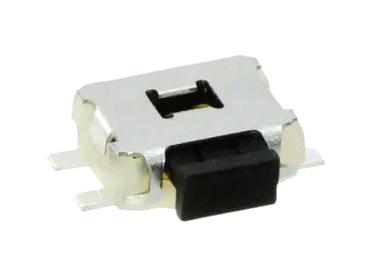

434331045822 Switch, 2.16N, Side Push, Blk, SMD Wurth Elektronik

WURTH ELEKTRONIKSKU:434331045822 Bestelcode:1867997

Prijs:
Actie prijs€1,16

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2867 units)

Documenten en downloads

Omschrijving

WURTH ELEKTRONIK - 434331045822 - Tactile Switch, WS-TASU, Side Actuated, Surface Mount, Rectangular Button, 220 gf, 50mA at 12VDC

  • Product Range: WS-TASU Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: SMD
  • Actuator Style: Rectangular Button
  • Actuating Force: 220gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 5.5mm x 3.5mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Actuator / Cap Colour: Black
  • Contact Configuration: DPST
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 12V
  • External Depth: 3.5mm
  • External Length / Height: 1.65mm
  • External Width: 4.7mm
  • Height: 1.65mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 100000
  • Operating Force: 2.16N
  • Switch Terminals: Solder
