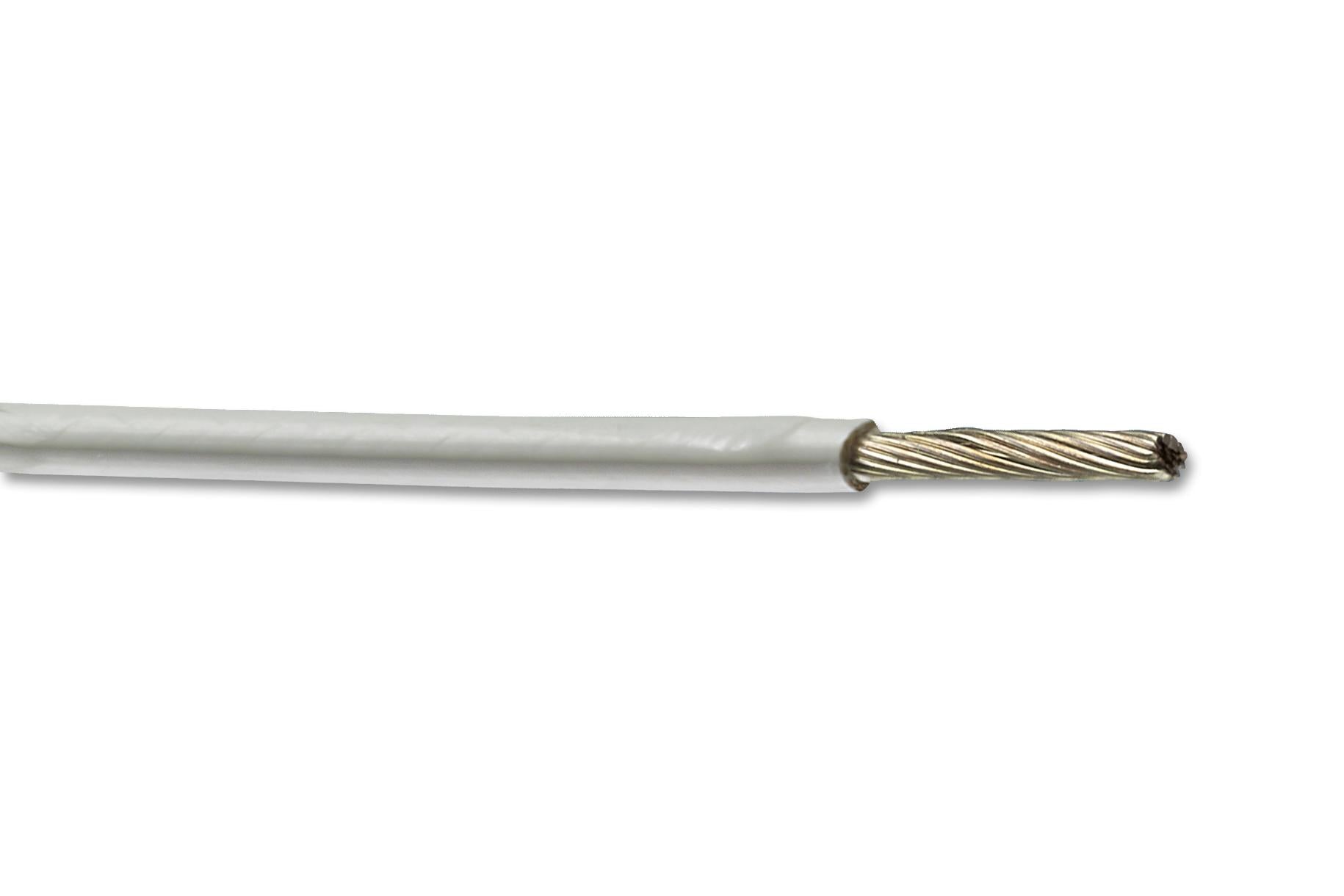

44A1111-24-9-9 Cable, 24AWG, SCRN, 1CORE, 100m Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYSKU:44A1111-24-9-9 Bestelcode:4176066

Prijs:
Actie prijs€446,21

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

RAYCHEM - TE CONNECTIVITY - 44A1111-24-9-9 - Wire, Stranded, Hook Up, Spec 44, PVDF, White, 24 AWG, 0.24 mm², 328 ft, 100 m

  • Jacket Material: PVDF
  • Jacket Colour: White
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.24mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: 19 x 0.127mm
  • Voltage Rating: 600V
  • Conductor Material: Copper
  • External Diameter: 1.83mm
  • Approval Specification: -
  • Product Range: Spec 44 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Type: Braided Shield
  • Conductor Make-up: 19 / 0.127mm
  • No. of Cores: 1Core
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Outer Diameter: 1.83mm
  • Screen Type Primary: Braid
  • Secondary Insulation Colour: White
  • Secondary Insulation Material: Radiation Crosslinked Modified PVF2
  • Short Term Temperature: 300°C
  • Standard: DEF61-12 (Part 26), MIL-W-81044
  • Voltage Rating VAC: 600V
  • Wire Size: 24AWG
