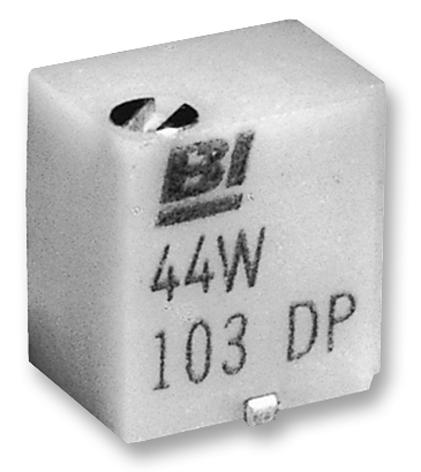

TT ELECTRONICS / BI TECHNOLOGIES - 44WR5KLFTB - Trimpot, Multi Turn, Cermet, Top Adjust, 5 kohm, Surface Mount, 9 Turns
- Track Resistance: 5kohm
- No. of Turns: 9Turns
- Potentiometer Mounting: Surface Mount Device
- Product Range: 44 Series
- Power Rating: 250mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (20-Jun-2016)
- Adjustment Type: Screwdriver Slot
- External Depth: 4.83mm
- External Length / Height: 5.08mm
- External Width: 3.91mm
- Insulation Resistance: 1000Mohm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Resistor Element Material: Cermet
- Track Taper: Linear
- Voltage Rating: 300V
