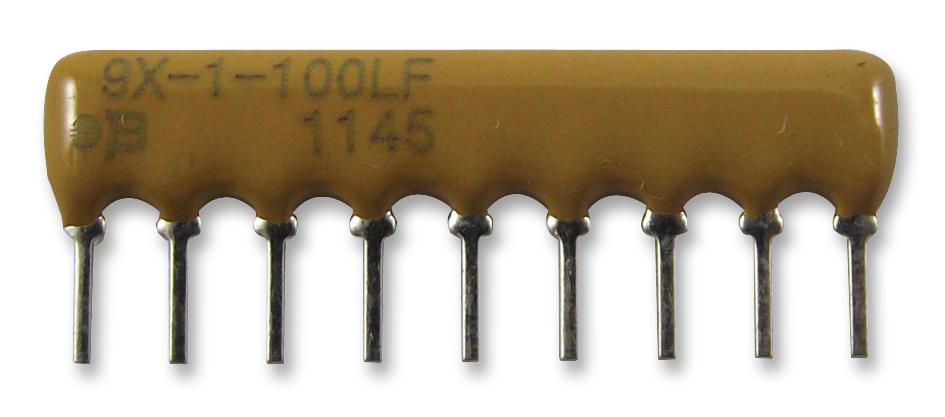

4609X-101-222LF Resistor Network, 2K2 Bourns

BOURNSSKU:4609X-101-222LF Bestelcode:9356916

Prijs:
Actie prijs€0,74

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3554 units)

Documenten en downloads

Omschrijving

BOURNS - 4609X-101-222LF - Fixed Network Resistor, 2.2 kohm, Bussed, 8 Resistors, SIP, PC Pin, ± 2%

  • Resistance: 2.2kohm
  • Product Range: 4600X Series
  • No. of Elements: 8Elements
  • Network Circuit Type: Bussed
  • Resistor Case Style: SIP
  • No. of Pins: 9Pins
  • Voltage Rating: 100V
  • Power Rating per Element: 200mW
  • Resistance Tolerance: ± 2%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: Lead (15-Jan-2019)
  • External Depth: 5.08mm
  • External Length / Height: 22.81mm
  • External Width: 2.49mm
  • Full Power Rating Temperature: 70°C
  • Insulation Resistance: 10Mohm
  • Lead Length: 3.43mm
  • Lead Spacing: 2.54mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 1.13W
  • Resistance R1: 2.2kohm
  • Resistor Element Material: Thick Film
  • Resistor Mounting: Through Hole
  • Resistor Terminals: Radial Leaded
  • Temperature Coeff Tracking +: 50ppm/°C
  • Temperature Coeff Tracking -: 50ppm/°C
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 2%
  • Tolerance -: 2%
  • Voltage Rating V DC: 100V
