4614-6000 HEADER, IDC, LUGGED, 14WAY 3M

3MSKU:4614-6000 Bestelcode:727556

Prijs:
Actie prijs€8,15

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (118 units)

Documenten en downloads

Omschrijving

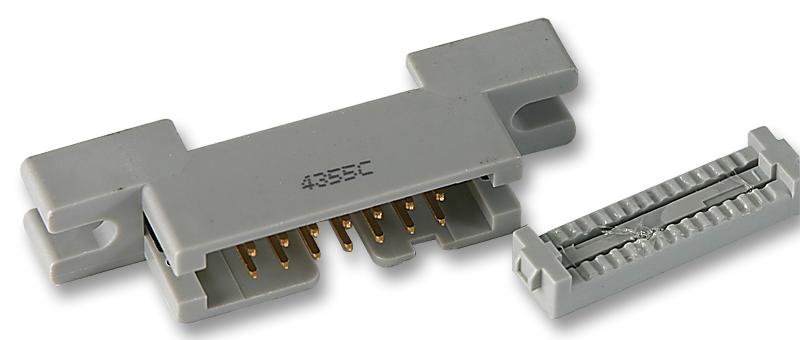

3M - 4614-6000 - IDC Connector, Lugged, IDC Plug, Male, 2.54 mm, 2 Row, 14 Contacts, Cable Mount

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 14Contacts
  • Gender: Plug
  • Product Range: 4600 Series
  • Contact Termination Type: IDC / IDT
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Grey
  • Connector Mounting Orientation: Cable
  • Connector Type: -
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Current Temperature: 70°C
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Material: Glass Filled Polyester (PBT)
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Working Voltage: 350V
