48.52.7.024.0050SPA Relay, DPDT, 250VAC, 8A Finder

FINDERSKU:48.52.7.024.0050SPA Bestelcode:1169323

Prijs:
Actie prijs€26,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (385 units)

Documenten en downloads

Omschrijving

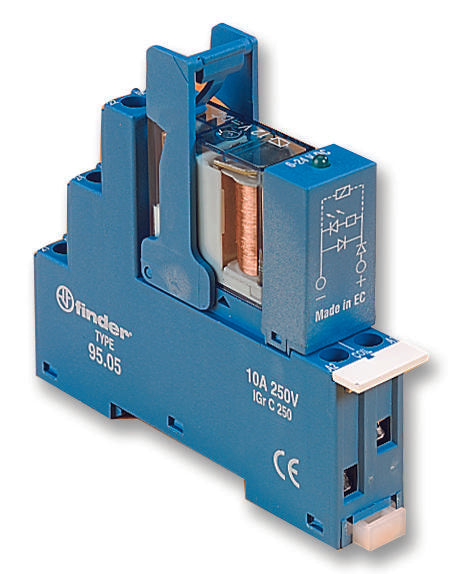

FINDER - 48.52.7.024.0050SPA - General Purpose Relay, 48 Series, Interface, DPDT, 24 VDC, 8 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 8A
  • Product Range: 48 Series
  • Relay Mounting: DIN Rail
  • Coil Type: DC Sensitive
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Nickel
  • Coil Resistance: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: BEAB, CSA, DEMKO, IMQ, SEMKO, SETI, SEV, UL, VDE
  • Approvals & Standards: CSA, UL, VDE
  • Average Power Consumption: 500mW
  • Coil Operating Lower Percent Limit: 110%
  • Coil Operating Upper Percent Limit: 80%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current Max: 15A
  • Contact Resistance: 1200ohm
  • Contact Voltage AC Max: 24V
  • Contact Voltage AC Nom: 250V
  • Current Rating: 5A
  • DC Coil Power: 500mW
  • External Depth: 76mm
  • External Height: 78.8mm
  • External Length / Height: 78.8mm
  • External Width: 15.8mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Relay Type: Interface
  • Switch Current Max: 8A
  • Switching Current Max: 8A
