Omschrijving

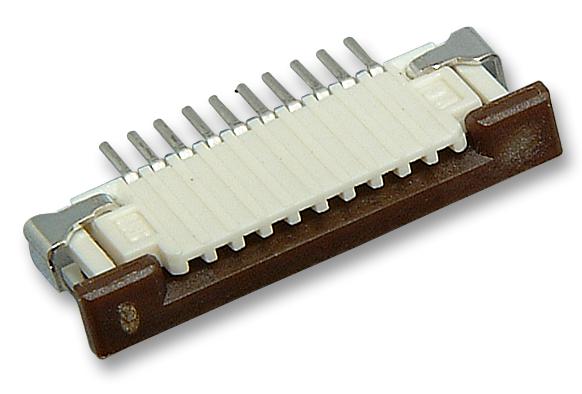

MOLEX - 522712879 - FFC / FPC Board Connector, 1 mm, 28 Contacts, Receptacle, Easy-On 52271, Surface Mount, Bottom
- Pitch Spacing: 1mm
- No. of Contacts: 28Contacts
- Gender: Receptacle
- Product Range: Easy-On 52271 Series
- Contact Termination Type: Surface Mount
- Contact Position: Bottom
- No. of Rows: 1 Row
- Contact Plating: Tin-Bismuth Plated Contacts
- Contact Material: Phosphor Bronze
- FFC/FPC Thickness: 0.3mm
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, UL
- Contact Resistance: 20mohm
- Contact Termination: Surface Mount Right Angle
- Current Rating: 0.5A
- Flammability Rating: UL94V-0
- Insulation Resistance: 100Mohm
- Material: PA Polyamide (Nylon) 4/6
- No. of Mating Cycles: 30
- No. of Rows: 1Rows
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Withstand Voltage: 500V
