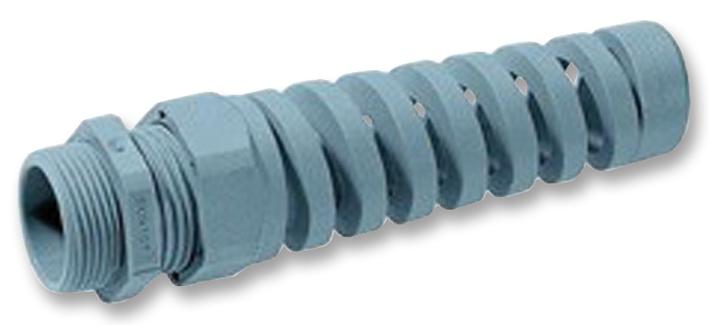

LAPP KABEL - 53111620 - Cable Gland, Skintop® BS-M, Spiral Strain Relief, M20 x 1.5, 7 mm, 13 mm, Nylon (Polyamide), Grey
- Thread Size - Imperial: -
- Thread Size - Metric: M20 x 1.5
- Cable Diameter Min: 7mm
- Cable Diameter Max: 13mm
- Cable Gland Material: Nylon (Polyamide)
- Gland Colour: Grey
- IP / NEMA Rating: IP68, IP69K
- Product Range: Skintop BS-M Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Gland
- Cable Diameter: 13mm
- Cable Diameter Max - Imperial: 0.512"
- Cable Diameter Max - Metric: 13mm
- Cable Diameter Min - Imperial: 0.276"
- Cable Diameter Min - Metric: 7mm
- Colour: Grey
- For Use With: Flexible Cables on Hand-Held Equipments
- Material: Polyamide
- Mounting Hole Dia: 20mm
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Pack Quantity: 50
- Thread Size: BS-M 20 x 1.5
