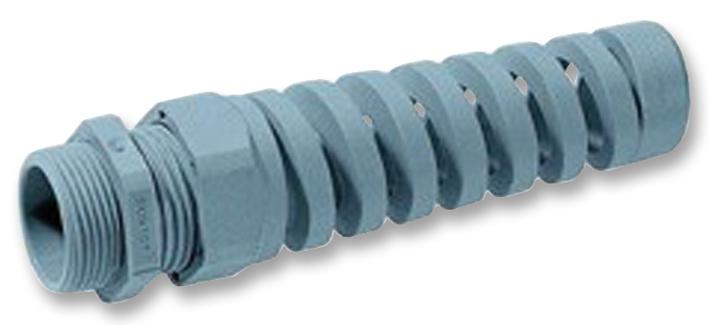

LAPP KABEL - 53111630 - Cable Gland, Skintop® BS-M, Spiral Strain Relief, M25 x 1.5, 9 mm, 17 mm, Nylon (Polyamide), Grey
- Thread Size - Imperial: -
- Thread Size - Metric: M25 x 1.5
- Cable Diameter Min: 9mm
- Cable Diameter Max: 17mm
- Cable Gland Material: Nylon (Polyamide)
- Gland Colour: Grey
- IP / NEMA Rating: IP68, IP69K
- Product Range: Skintop BS-M Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Gland
- Cable Diameter: 17mm
- Cable Diameter Max - Imperial: 0.669"
- Cable Diameter Max - Metric: 17mm
- Cable Diameter Min - Imperial: 0.354"
- Cable Diameter Min - Metric: 9mm
- Colour: Grey
- For Use With: Flexible Cables on Hand-Held Equipments
- Material: Polyamide
- Mounting Hole Dia: 25mm
- Operating Temperature Max: 100°C
- Operating Temperature Min: -20°C
- Thread Size: BS-M 25 x 1.5
