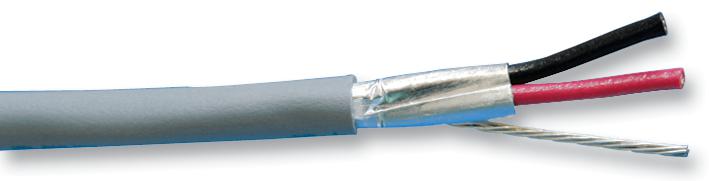

BELDEN - 5400FE 008500 - Multicore Cable, Security Audio, Screened, 2 Core, 20 AWG, 0.514 mm², 498.69 ft, 152.4 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.514mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.32mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 3.683mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil Shield
- Conductor Make-up: 7 / 28
- Core - Core Capacitance: 56pF/ft
- Current Rating: 3.75A
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 3.68mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Voltage Rating VAC: 300V
- Wire Size: 20AWG
