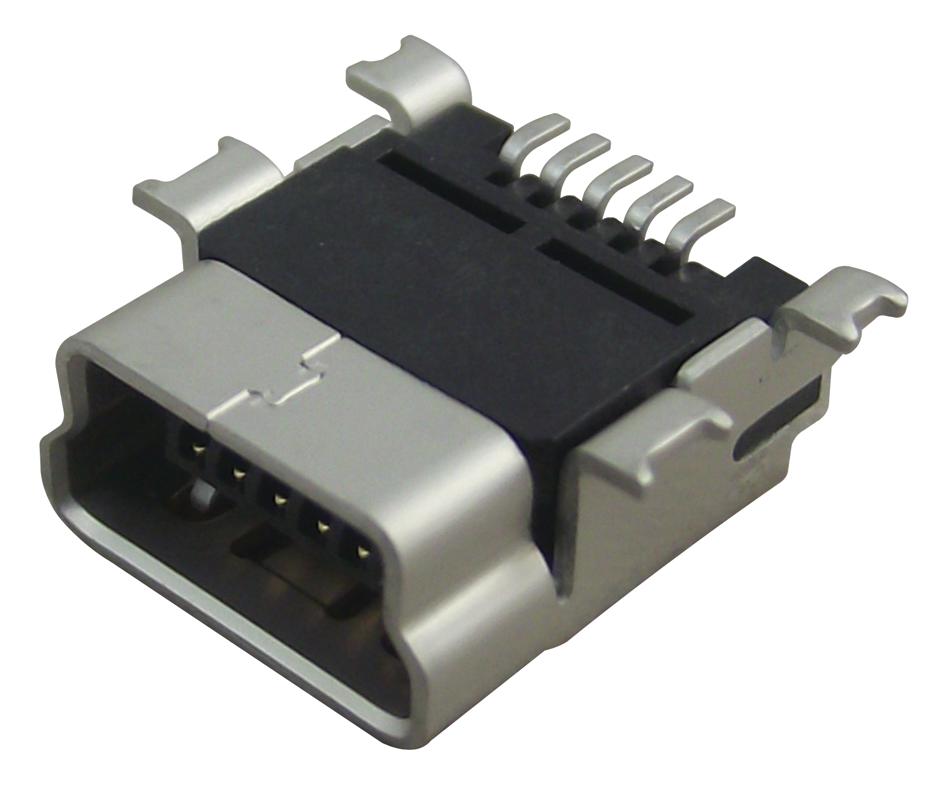

MOLEX - 54819-0572 - USB Connector, Mini USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount, Right Angle
- USB Connector Type: Mini USB Type B
- USB Standard: USB 2.0
- Gender: Receptacle
- No. of Positions: 5Ways
- Connector Mounting: Surface Mount
- Orientation: Right Angle
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- Product Range: 54819 Series
- SVHC: No SVHC (15-Jan-2019)
- Colour: Grey
- Connector Mounting Orientation: Surface Mount
- Connector Type: USB Mini B
- Contact Resistance: 50mohm
- Contact Termination: Surface Mount Right Angle
- Contact Termination Type: Surface Mount
- Contact to Contact Capacitance: 2pF
- External Depth: 9mm
- External Length / Height: 3.1mm
- External Width: 6.9mm
- Insulation Resistance: 100Mohm
- No. of Contacts: 5Contacts
- Operating Temperature Max: 50°C
- Operating Temperature Min: 0°C
- Termination Method: Solder
- Withstand Voltage: 100VAC
- Working Voltage: 30V
