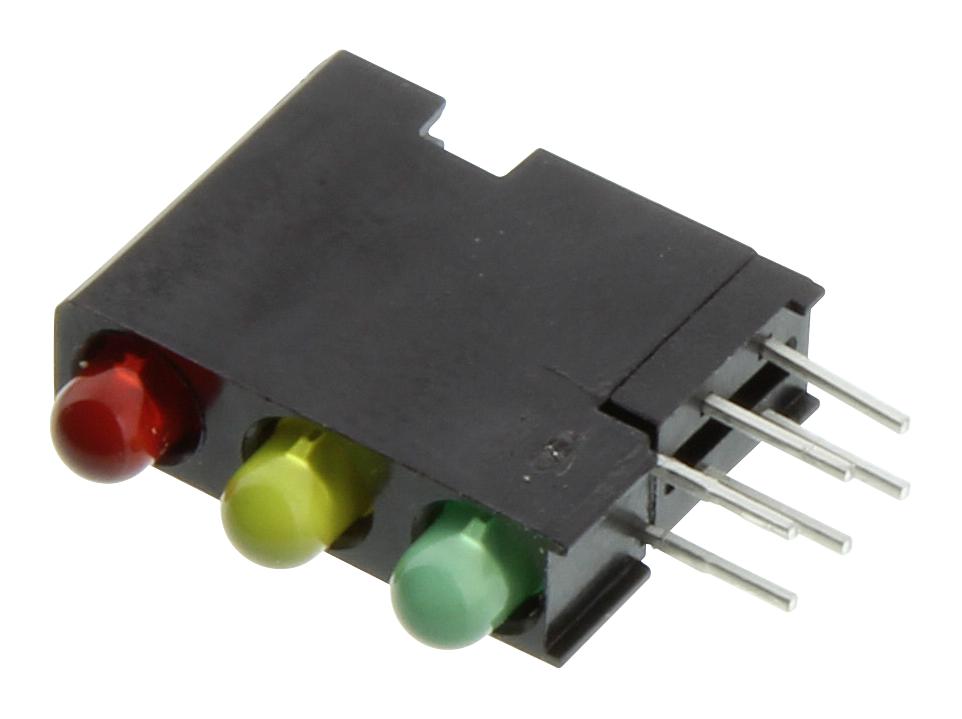

DIALIGHT - 564-0200-132F - Circuit Board Indicator, Red, Yellow, Green, 3 LEDs, Through Hole, T-1 (3mm), R 2mA, Y 2mA, G 2mA
- LED Colour: Red, Yellow, Green
- No. of LEDs: 3LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current / Colour: R 2mA, Y 2mA, G 2mA
- Luminous Intensity / Colour: R 1.6mcd, Y 5mcd, G 1.6mcd
- Forward Voltage / Colour: R 1.7V, Y 1.9V, G 1.8V
- Viewing Angle: 60°
- Height: 15.24mm
- Width: 4.32mm
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Display Size: 4.32mm x 15.24mm
- Forward Current If: 2mA
- Forward Current If Max: 2mA
- Forward Voltage VF Max: 2.4V
- LED / Lamp Size: 3mm / T-1
- LED Configuration: Array
- LED Type: Multicolour
- Lens Shape: Round
- Luminous Intensity: 5mcd
- Luminous Intensity Typ: 5mcd
- No. of Pins: 6Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +100°C
