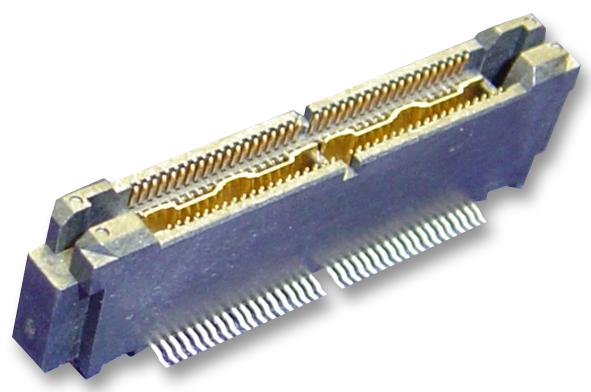

AMP - TE CONNECTIVITY - 5767007-8 - Mezzanine Connector, 6.6mm, Header, 0.64 mm, 2 Rows, 38 Contacts, Surface Mount, Copper Alloy
- Product Range: MICTOR Series
- No. of Contacts: 38Contacts
- Gender: Plug
- Pitch Spacing: 0.64mm
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: 7.06mm
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL
- Approval Category: E28476
- Colour: Black
- Connector Insert Type: Pin
- Connector Mounting Orientation: PCB
- Contact Termination: Solder
- Current Rating: 7.6A
- External Length / Height: 6.6mm
- Housing: Liquid Crystal Polymer
- Insulation Resistance: 10000Mohm
- Insulator Material: PET (Polyester)
- Length: 25.4mm
- Mounting Orientation: Verticle
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 30V
- Withstand Voltage: 500V
