5853 RD001 Wire, UL1213, 26AWG, Red, 304.8m Alpha Wire

ALPHA WIRESKU:5853 RD001 Bestelcode:1619619

Prijs:
Actie prijs€334,36

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (15 units)

Documenten en downloads

Omschrijving

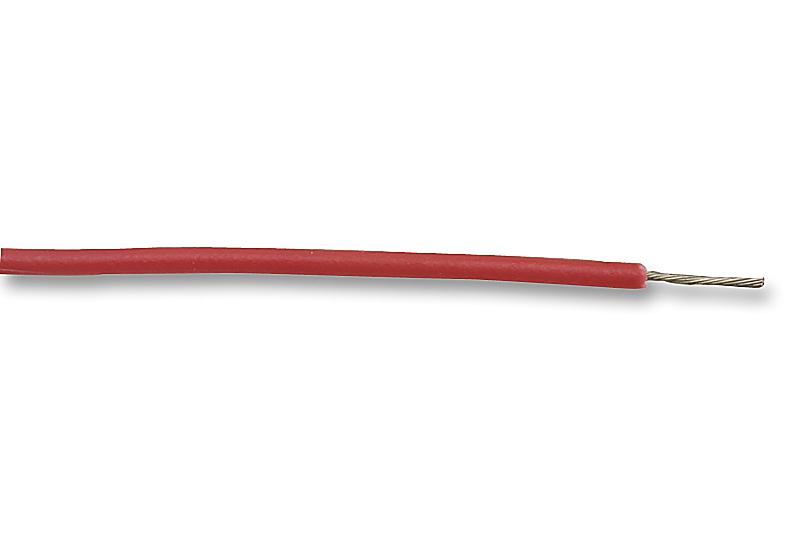

ALPHA WIRE - 5853 RD001 - Wire, Stranded, Hook Up, UL1213, PTFE, Red, 26 AWG, 0.142 mm², 1000 ft, 305 m

  • Jacket Material: PTFE
  • Jacket Colour: Red
  • Wire Gauge: 26AWG
  • Conductor Area CSA: 0.142mm²
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 305m
  • No. of Max Strands x Strand Size: 7 x 34AWG
  • Voltage Rating: 600V
  • Conductor Material: Silver Plated Copper
  • External Diameter: 1.016mm
  • Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1213
  • Conductor Make-up: 7 / 34AWG
  • Current Rating: 7A
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -60°C
  • Outer Diameter: 1.02mm
  • Secondary Insulation Colour: Red
  • Secondary Insulation Material: TFE
  • Voltage Rating VAC: 600V
  • Wire Size: 26AWG
