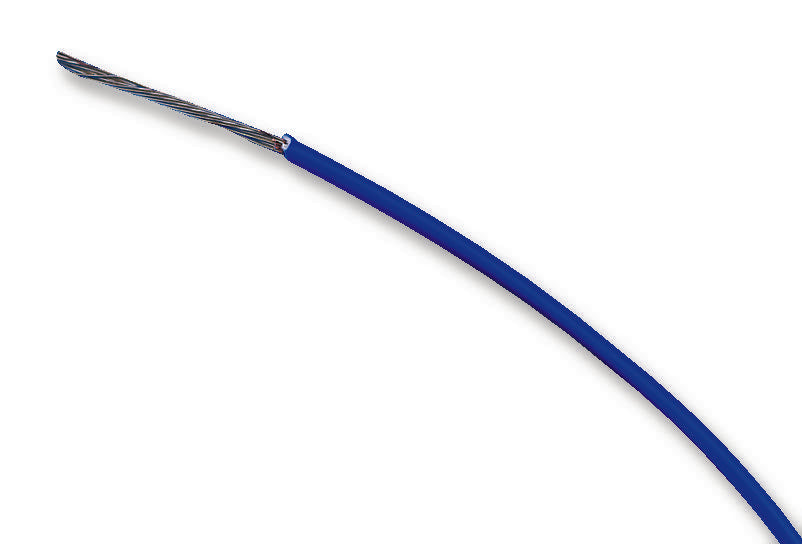

5854/7 BL005 Wire, UL1213, 24AWG, Blue, 30.5m Alpha Wire

ALPHA WIRESKU:5854/7 BL005 Bestelcode:1199123

Prijs:
Actie prijs€53,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (23 units)

Documenten en downloads

Omschrijving

ALPHA WIRE - 5854/7 BL005 - Wire, Stranded, Hook Up, UL1213, PTFE, Blue, 24 AWG, 0.242 mm², 100 ft, 30.5 m

  • Jacket Material: PTFE
  • Jacket Colour: Blue
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.242mm²
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • No. of Max Strands x Strand Size: 7 x 32AWG
  • Voltage Rating: 600V
  • Conductor Material: Silver Plated Copper
  • External Diameter: 1.14mm
  • Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Cable UL Style Number: UL1213
  • Conductor Make-up: 7 / 32AWG
  • Current Rating: 10A
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -60°C
  • Outer Diameter: 1.12mm
  • Secondary Insulation Colour: Blue
  • Secondary Insulation Material: TFE
  • Voltage Rating VAC: 600V
  • Wire Size: 24AWG
