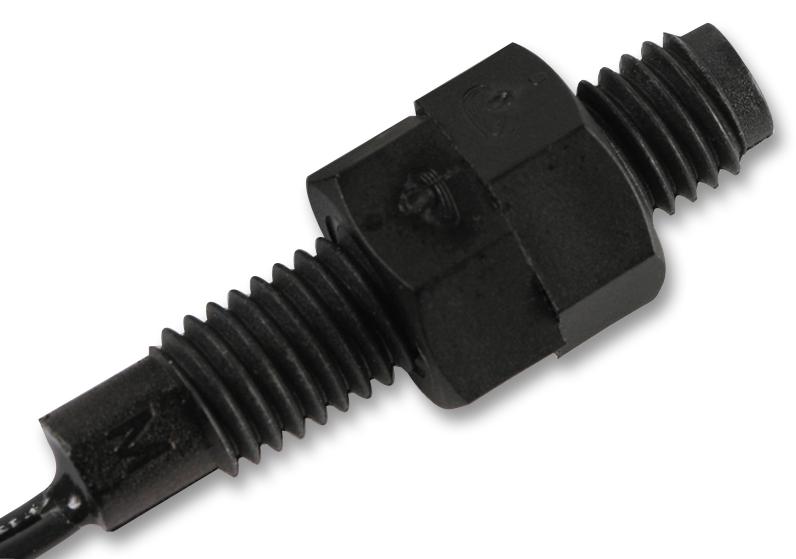

LITTELFUSE - 59070-1-S-02-A - Proximity Reed Sensor, 8.4 mm, 1NO, Cable Mount, 59070 Series
- Sensing Range Max: 9mm
- Sensor Mounting: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Supply Current: 500mA
- Product Range: 59070 Series
- Body Length: 38.1mm
- Breakover Voltage Min: 250VDC
- Contact Configuration: 1NO
- Current Load AC Max: 1.2A
- External Diameter: 5.56mm
- Lead Length: 300mm
- Operating Temperature Range: -40°C to +105°C
- Output Power Max: 10W
- Power Rating: 10W
- Sensing Distance Max: 9mm
- Sensing Range: 12mm to 18mm
- Sensor Input: Magnetic
- Supply Voltage DC Max: 200V
- Switching Current AC Max: 0.5A
- Switching Power Max: 10W
- Switching Voltage: 200VDC
- Switching Voltage DC: 200
- Thread Length: 31.75mm
- Thread Size: M8
