59070-4-S-02-A Sensor, Plastic Barrel, M8, NC LITTELFUSE

LITTELFUSESKU:59070-4-S-02-A Bestelcode:5540884

Prijs:
Actie prijs€8,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (465 units)

Documenten en downloads

Omschrijving

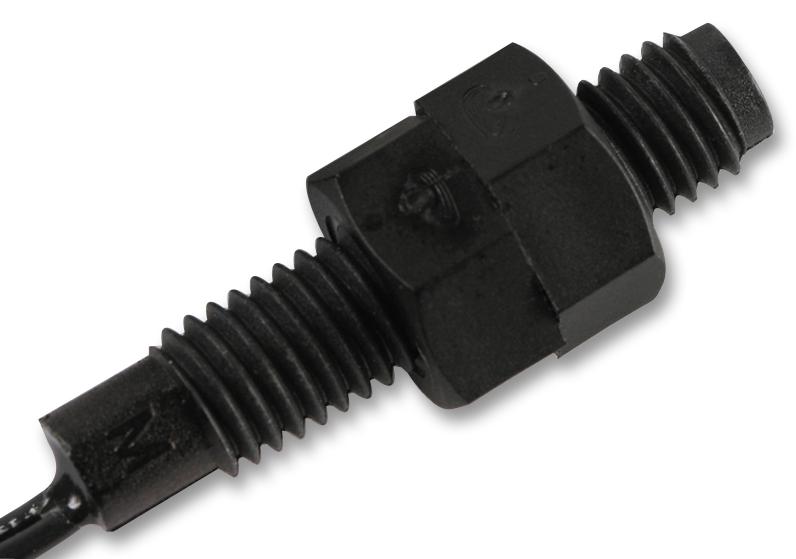

LITTELFUSE - 59070-4-S-02-A - Proximity Reed Sensor, 6.5 mm, 1NC, Cable Mount, 59070 Series

  • Sensing Range Max: 7.5mm
  • Sensor Mounting: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Supply Current: 250mA
  • Product Range: 59070 Series
  • Body Length: 38.1mm
  • Breakover Voltage Min: 200VDC
  • Contact Configuration: 1NC
  • Current Load AC Max: 1.5A
  • External Diameter: 5.56mm
  • Lead Length: 300mm
  • Operating Temperature Range: -40°C to +105°C
  • Output Power Max: 5W
  • Power Rating: 5W
  • Sensing Distance Max: 7.5mm
  • Sensing Range: 15mm to 20mm
  • Sensor Input: Magnetic
  • Supply Voltage DC Max: 175V
  • Switch Operation: On-Off
  • Switching Current AC Max: 0.25A
  • Switching Power Max: 5W
  • Switching Voltage: 175VDC
  • Switching Voltage DC: 175
  • Thread Length: 31.75mm
  • Thread Size: M8
