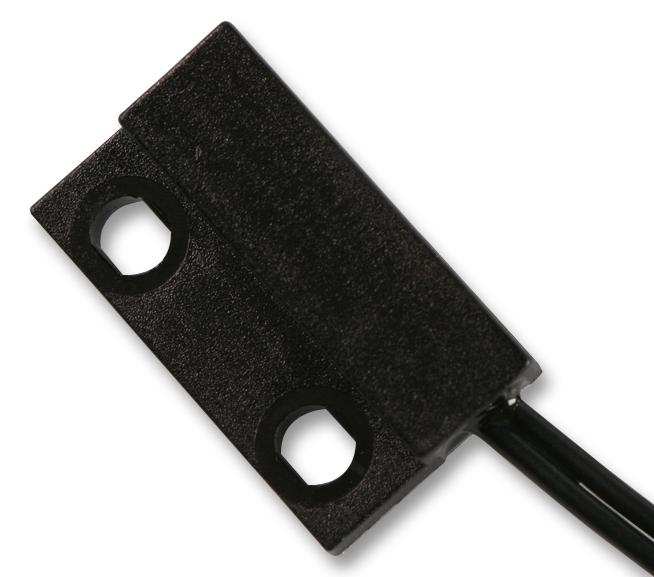

LITTELFUSE - 59140-1-S-02-A - Proximity Reed Sensor, 16 mm, 1NO, Flange Mount, 59140 Series
- Sensing Range Max: 11.5mm
- Sensor Mounting: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Supply Current: 500mA
- Product Range: 59140 Series
- Breakover Voltage Min: 250VDC
- Contact Configuration: 1NO
- Current Load AC Max: 1.2A
- External Depth: 5.99mm
- External Length / Height: 23.01mm
- External Width: 14mm
- Fixing Centres: 14mm
- Lead Length: 300mm
- Operating Temperature Range: -40°C to +105°C
- Output Power Max: 10W
- Power Rating: 10W
- Sensing Distance Max: 11.5mm
- Sensing Range: 0mm to 11.5mm
- Sensor Input: Magnetic
- Supply Voltage DC Max: 200V
- Switching Current AC Max: 0.5A
- Switching Power Max: 10W
- Switching Voltage: 200VDC
- Switching Voltage DC: 200
