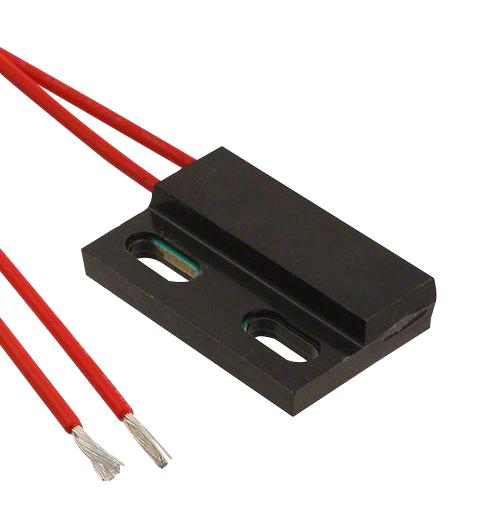

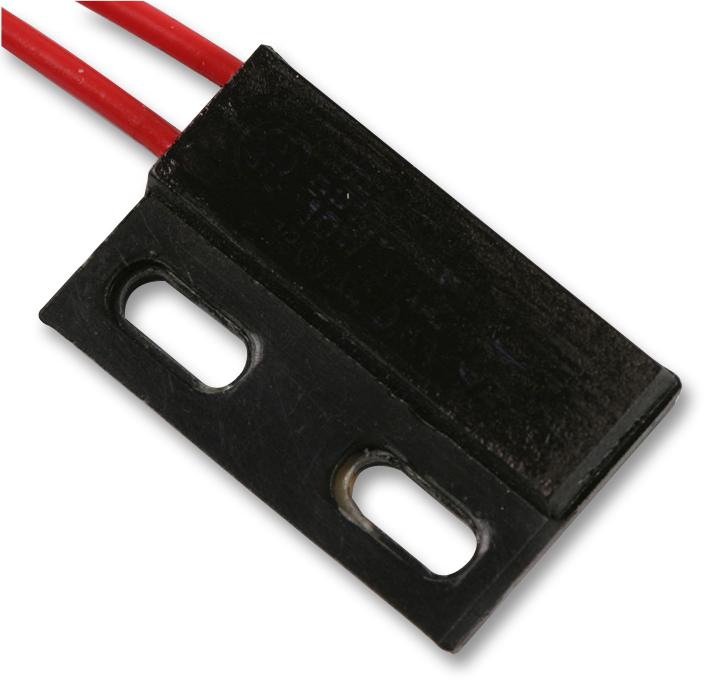

59140-4-S-02-A Reed Sensor, Mini, Flange, NC LITTELFUSE

LITTELFUSESKU:59140-4-S-02-A Bestelcode:5541177

Prijs:
Actie prijs€7,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2812 units)

Documenten en downloads

Omschrijving

LITTELFUSE - 59140-4-S-02-A - Reed Switch, 59140 Series, Flange Mount, 11.6 mm, SPST-NC, 5 W, 175 Vdc, 0.25 A, 15 to 20 AT

  • Sensing Range Max: 10.5mm
  • Sensor Mounting: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Supply Current: 250mA
  • Product Range: 59140 Series
  • Breakover Voltage Min: 200VDC
  • Contact Configuration: 1NC
  • Current Load AC Max: 1.5A
  • External Depth: 5.99mm
  • External Length / Height: 23.01mm
  • External Width: 14mm
  • Fixing Centres: 14mm
  • Lead Length: 300mm
  • Operating Temperature Range: -40°C to +105°C
  • Output Power Max: 5W
  • Power Rating: 5W
  • Sensing Distance Max: 10.5mm
  • Sensing Range: 15mm to 20mm
  • Sensor Input: Magnetic
  • Supply Voltage DC Max: 175V
  • Switch Operation: On-Off
  • Switching Current AC Max: 0.25A
  • Switching Power Max: 5W
  • Switching Voltage: 175VDC
  • Switching Voltage DC: 175
