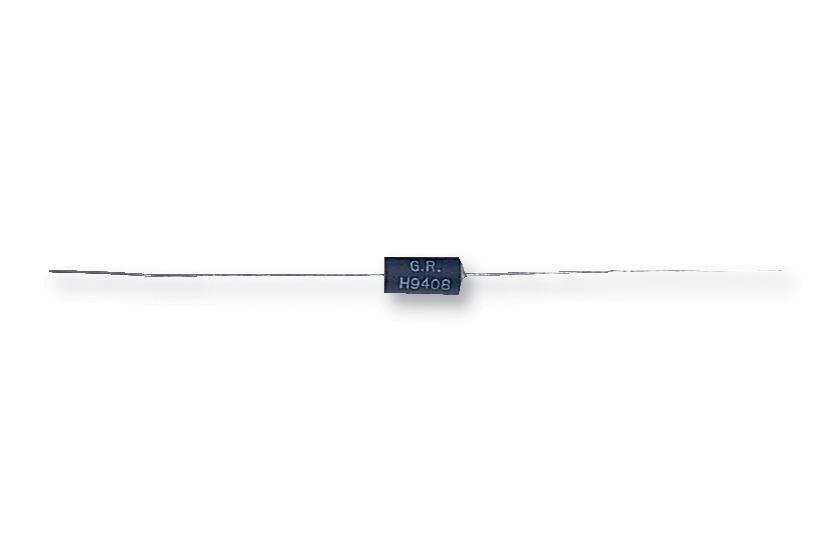

RHOPOINT - 5G10D 100R - Through Hole Resistor, 100 ohm, 5G10, 200 mW, ± 0.1%, Axial Leaded, 175 V
- Resistance: 100ohm
- Product Range: 5G10 Series
- Power Rating: 200mW
- Resistance Tolerance: ± 0.1%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 175V
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 5ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 3.97mm
- External Length / Height: 7.94mm
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.51mm
- Lead Length: 38mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 5ppm/°C
- Temperature Coeff. -: 5ppm/°C
- Thermal EMF: 0.4µV/°C
- Tolerance +: 0.1%
- Tolerance -: 0.1%
- Voltage Rating V DC: 175V
- Voltage Rating VAC: 175V
