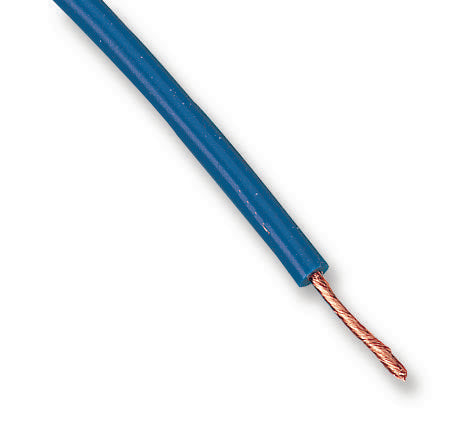

STAUBLI - 60.7200-23 - Wire, Stranded, Flexiplast® E, Hi Flex, TPE, Blue, 14 AWG, 2.5 mm², 82 ft, 25 m
- Jacket Material: TPE
- Jacket Colour: Blue
- Wire Gauge: 14AWG
- Conductor Area CSA: 2.5mm²
- Reel Length (Imperial): 82ft
- Reel Length (Metric): 25m
- No. of Max Strands x Strand Size: 651 x 0.07mm
- Voltage Rating: 750V
- Conductor Material: Copper
- External Diameter: 3.6mm
- Approval Specification: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 651 / 0.07mm
- Current Rating: 32A
- Intermittent Temperature Max: 130°C
- Operating Temperature Max: 110°C
- Operating Temperature Min: -30°C
- Outer Diameter: 3.6mm
- Voltage Rating VAC: 750V
