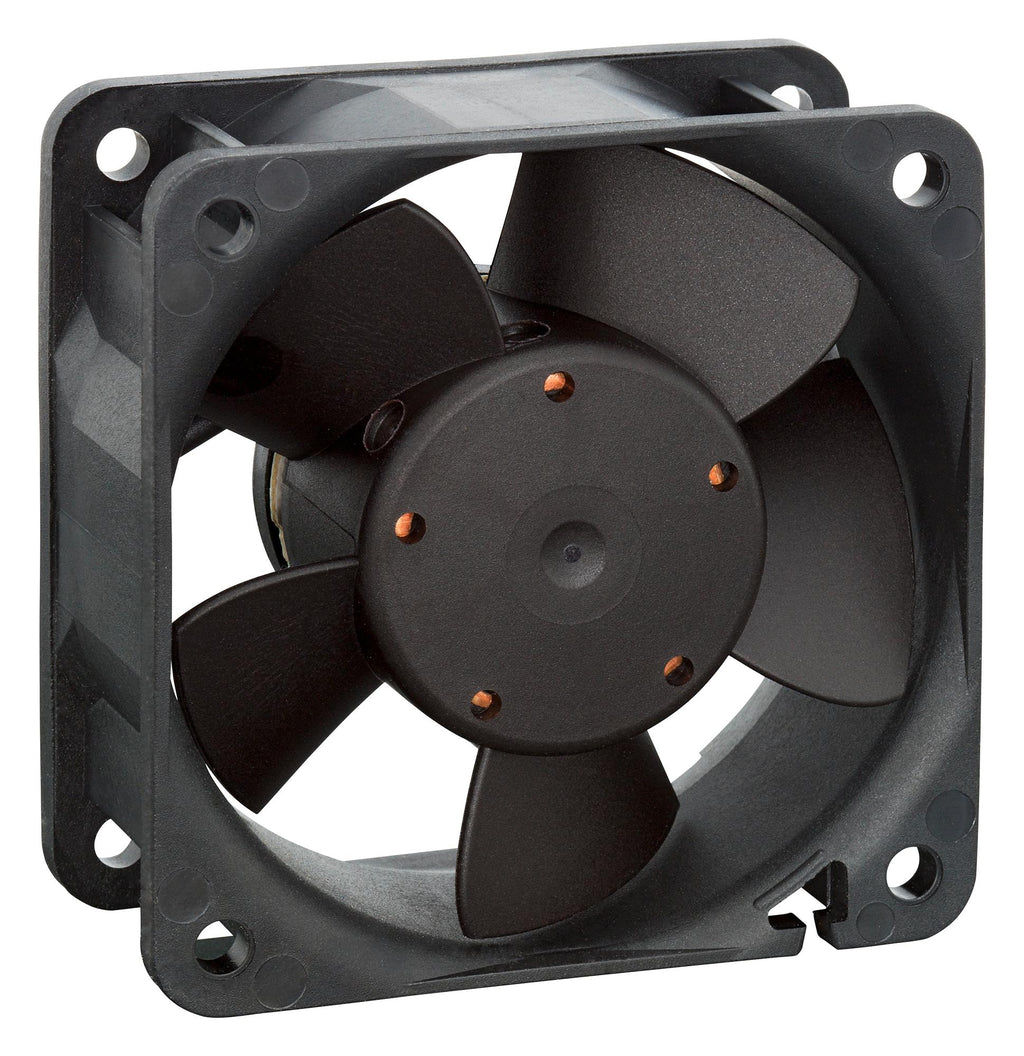

EBM-PAPST - 612NGME - DC Axial Fan, 12 V, Square, 60 mm, 25 mm, Sleeve Bearing, 20.6 CFM
- Supply Voltage: 12V
- Current Type: DC
- Fan Frame Size: 60mm
- External Depth: 25mm
- Noise Rating: 28dBA
- Flow Rate - Imperial: 20.6cu.ft/min
- Flow Rate - Metric: 0.58m³/min
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 600NG Series
- Power Rating: -
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- External Height: 60mm
- External Width: 60mm
- Fixing Centres: 50mm
- Fixing Hole Diameter: 4mm
- Frame Dimensions: 60mm x 60mm x 25mm
- Input Voltage Max: 15V
- Input Voltage Min: 8V
- Operating Temperature Max: 65°C
- Operating Temperature Min: -20°C
- Operating life Time: 35000h
- Panel Cutout Diameter: 58mm
- Power Consumption: 1.6W
- Standard: VDE0730
- Supply Voltage DC Max: 15V
- Supply Voltage DC Min: 8V
- Type: Low Noise,60mm
