614NGL Fan, 60mm, 24Vdc ebm-papst

EBM-PAPSTSKU:614NGL Bestelcode:9600329

Prijs:
Actie prijs€34,77

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (608 units)

Documenten en downloads

Omschrijving

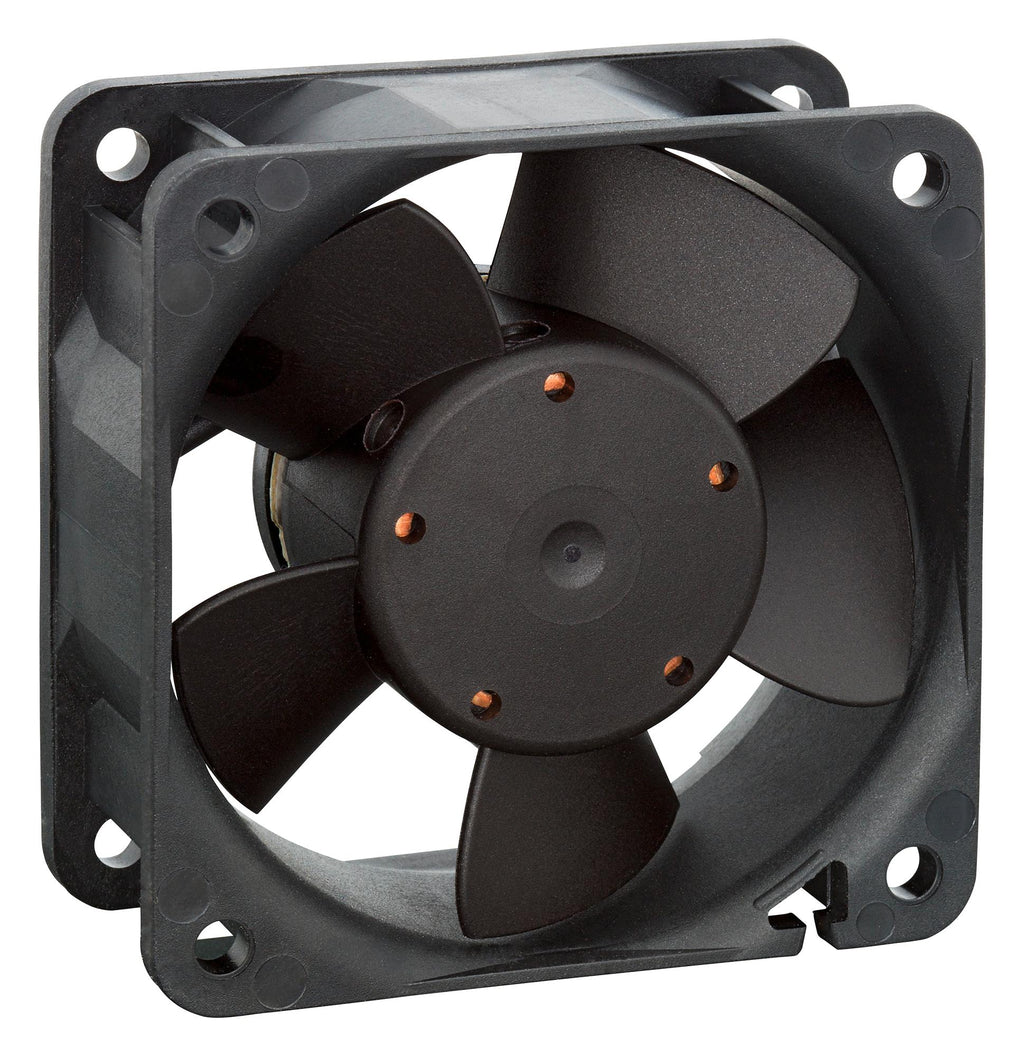

EBM-PAPST - 614NGL - DC Axial Fan, 24 V, Square, 60 mm, 25 mm, Sleeve Bearing, 12.4 CFM

  • Supply Voltage: 24V
  • Current Type: DC
  • Fan Frame Size: 60mm
  • External Depth: 25mm
  • Noise Rating: 16dBA
  • Flow Rate - Imperial: 12.4cu.ft/min
  • Flow Rate - Metric: 21m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 600NG Series
  • Power Rating: -
  • IP Rating: IP54, IP68
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • External Height: 60mm
  • External Width: 60mm
  • Fixing Centres: 50mm
  • Fixing Hole Diameter: 4mm
  • Frame Dimensions: 60mm x 60mm x 25mm
  • Input Voltage Max: 28V
  • Input Voltage Min: 18V
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 35000h
  • Panel Cutout Diameter: 58mm
  • Power Consumption: 0.8W
  • Standard: VDE0730
  • Supply Voltage DC Max: 28V
  • Supply Voltage DC Min: 18V
  • Type: Super Low Noise,60mm
