61.7613-21 Wire, Silicone, Black, 10mm, 10m STAUBLI

STAUBLISKU:61.7613-21 Bestelcode:3170299

Prijs:
Actie prijs€233,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (13 units)

Documenten en downloads

Omschrijving

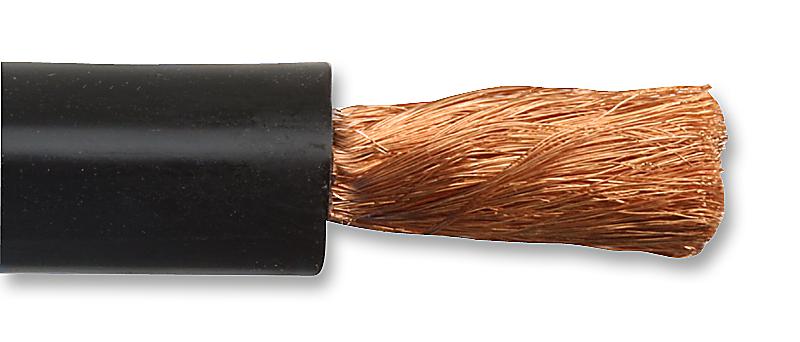

STAUBLI - 61.7613-21 - Wire, Stranded, Silistrom® Hi Flex 1.5kV, 75A, Silicone Rubber, Black, 8 AWG, 10 mm², 32 ft, 10 m

  • Jacket Material: Silicone Rubber
  • Jacket Colour: Black
  • Wire Gauge: 8AWG
  • Conductor Area CSA: 10mm²
  • Reel Length (Imperial): 32ft
  • Reel Length (Metric): 10m
  • No. of Max Strands x Strand Size: 2556 x 0.07mm
  • Voltage Rating: 1.5kV
  • Conductor Material: Copper
  • External Diameter: 9mm
  • Approval Specification: -
  • Product Range: Silistrom Series
  • SVHC: No SVHC (15-Jan-2019)
  • Conductor Make-up: 2556 / 0.07mm
  • Current Rating: 75A
  • Dielectric Strength: 20kV/mm
  • Intermittent Temperature Max: 250°C
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -80°C
  • Outer Diameter: 9mm
  • Primary Insulation Thickness: 2.1mm
  • Voltage Rating VAC: 1500V
