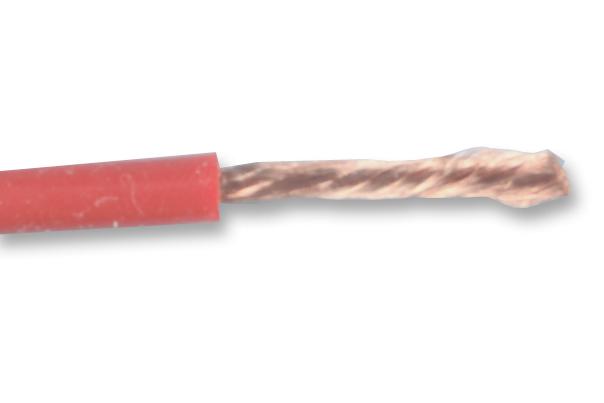

STAUBLI - 61.7615-22 - Wire, Stranded, Silistrom® Hi Flex, 1.5kV, 130A, Silicone Rubber, Red, 4 AWG, 25 mm², 32 ft, 10 m
- Jacket Material: Silicone Rubber
- Jacket Colour: Red
- Wire Gauge: 4AWG
- Conductor Area CSA: 25mm²
- Reel Length (Imperial): 32ft
- Reel Length (Metric): 10m
- No. of Max Strands x Strand Size: 6496 x 0.07mm
- Voltage Rating: 1.5kV
- Conductor Material: Copper
- External Diameter: 11.9mm
- Approval Specification: -
- Product Range: Silistrom Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 6496 / 0.07mm
- Current Rating: 130A
- Dielectric Strength: 20kV/mm
- Operating Temperature Max: 150°C
- Operating Temperature Min: -80°C
- Outer Diameter: 11.8mm
- Primary Insulation Thickness: 2.3mm
- Voltage Rating VAC: 1500V
