Omschrijving

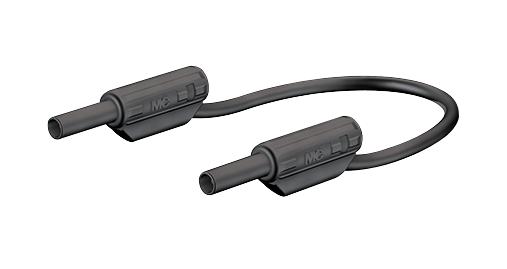

STAUBLI - 659179-100-21 - Test Lead, 2mm Banana Plug to 2mm Banana Plug, Black, 600 V, 10 A, 1 m
- Test Connector Type A: 2mm Stackable Banana Plug, Shrouded
- Test Connector Type B: 2mm Stackable Banana Plug, Shrouded
- Voltage Rating: 600V
- Current Rating: 10A
- Insulator Colour: Black
- Lead Length - Metric: 1m
- Lead Length - Imperial: 39.6"
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: IEC
- Cable Assembly Type: Test
- Cable Length: 1m
- Colour: Black
- Conductor Area CSA: 0.5mm²
- Connector A Contact Material: Brass
- Connector A Contact Plating: Gold
- Connector B Contact Material: Brass
- Connector B Contact Plating: Gold
- Connector Type A: 2mm Banana Plug, Shrouded, Stackable
- Contact Resistance: 0.6mohm
- External Depth: 11.3mm
- External Width: 7.6mm
- Lead Length: 1m
- Material: PVC
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Plug Length: 36.2mm
- Standard: IEC 1010-2-031
- Voltage Rating V DC: 600V
