Omschrijving

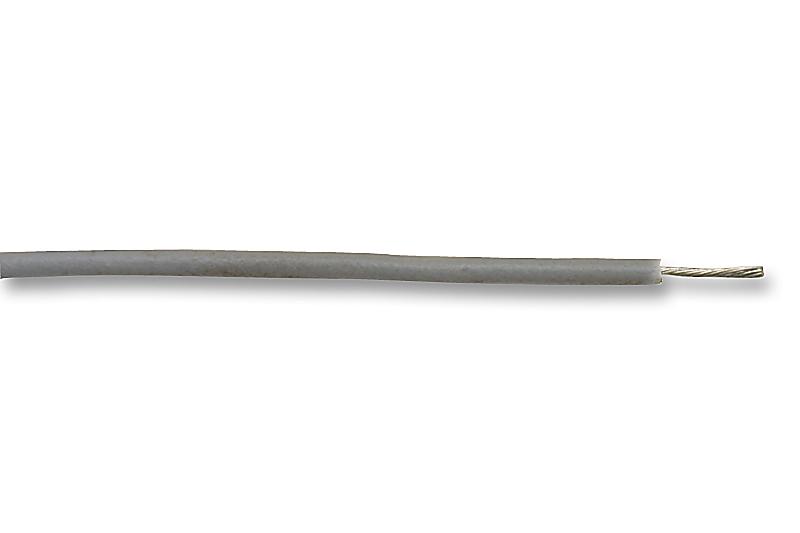

ALPHA WIRE - 6716 SL005 - Wire, Stranded, Hook Up, EcoWire®, UL11028, MPPE, Slate, 16 AWG, 1.3 mm², 100 ft, 30.5 m
- Jacket Material: MPPE
- Jacket Colour: Slate
- Wire Gauge: 16AWG
- Conductor Area CSA: 1.3mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- No. of Max Strands x Strand Size: 26 x 30AWG
- Voltage Rating: 600V
- Conductor Material: Tinned Copper
- External Diameter: 2.057mm
- Approval Specification: CE, CSA AWM I A/B FT1, UL 11028 VW-1
- Product Range: EcoWire Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 26 / 30AWG
- Current Rating: 19A
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Outer Diameter: 2.06mm
- Wire Size: 16AWG
