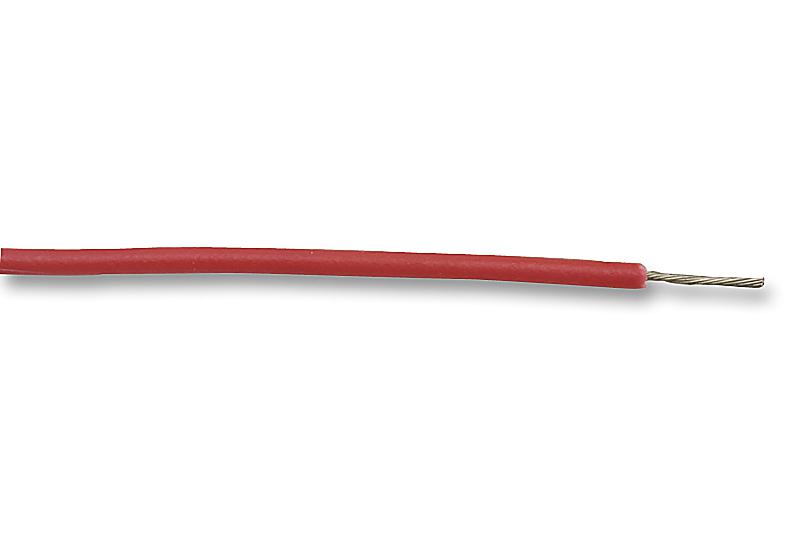

ALPHA WIRE - 6718 RD001 - Wire, Stranded, Hook Up, EcoWire®, UL11028, MPPE, Red, 12 AWG, 3.3 mm², 1000 ft, 305 m
- Jacket Material: MPPE
- Jacket Colour: Red
- Wire Gauge: 12AWG
- Conductor Area CSA: 3.3mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 305m
- No. of Max Strands x Strand Size: 65 x 30AWG
- Voltage Rating: 600V
- Conductor Material: Tinned Copper
- External Diameter: 2.97mm
- Approval Specification: CE, CSA AWM I A/B FT1, UL 11028 VW-1
- Product Range: EcoWire Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 65 / 30AWG
- Current Rating: 36A
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Outer Diameter: 2.97mm
- Wire Size: 12AWG
