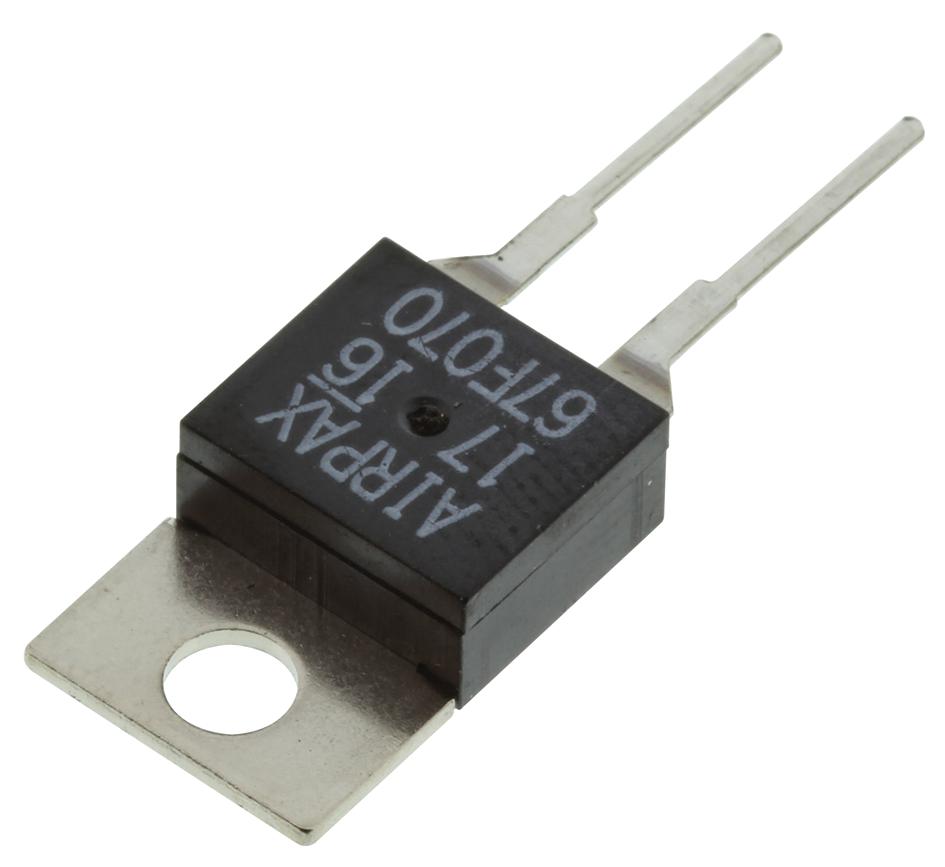

SENSATA / AIRPAX - 67F070 - Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series, 70 °C, Normally Open, TO-220
- Switching Temperature: 70°C
- Reset Temperature: 50°C
- Contact Operation: Normally Open
- Sensor Terminals: Through Hole
- Sensor Housing: TO-220
- Contact Rating: 1A @ 120V ac, 1A @ 48V dc
- Product Range: 6700 Series
- SVHC: No SVHC (15-Jan-2018)
- Actuating Temperature Max: 50°C
- Actuating Temperature Min: 70°C
- Contact Configuration: 1NO
- Contact Voltage AC Max: 120V
- External Depth: 4.6mm
- External Length / Height: 30mm
- External Width: 10.2mm
- Fixing Hole Diameter: 3.6mm
- For Use With: Crowded PC Boards
- No. of Pins: 2Pins
- No. of Pins: 2 Pin
- Switch Operation: Off-On
- Temperature Difference Max: 4°C
- Tolerance Temperature: 5°C
