67F090 . Switch, Thermal, N/O, 90°C SENSATA / AIRPAX

SENSATA / AIRPAXSKU:67F090 Bestelcode:1524710

Prijs:
Actie prijs€13,33

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (286 units)

Documenten en downloads

Omschrijving

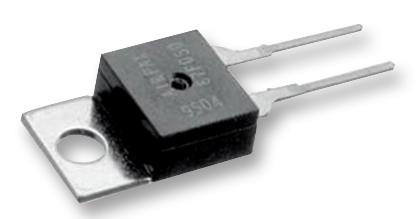

SENSATA / AIRPAX - 67F090 - Thermostat Switch, Subminiature, Bimetal Disc, 6700 Series, 90 °C, Normally Open, TO-220

  • Switching Temperature: 90°C
  • Reset Temperature: 60°C
  • Contact Operation: Normally Open
  • Sensor Terminals: Pin
  • Sensor Housing: TO-220
  • Contact Rating: 1A @ 120V ac, 1A @ 48V dc
  • Product Range: 6700 Series
  • SVHC: No SVHC (15-Jan-2018)
  • Actuating Temperature Max: 60°C
  • Actuating Temperature Min: 90°C
  • Approval Bodies: CSA, UL
  • Contact Configuration: 1NO
  • Contact Voltage AC Max: 120V
  • External Depth: 4.6mm
  • External Length / Height: 30mm
  • External Width: 10.2mm
  • Fixing Hole Diameter: 3.6mm
  • For Use With: Crowded PC Boards
  • Load Type: Resistive
  • Switch Operation: Off-On
  • Temperature Difference Max: 6°C
  • Thermostat Mounting: Through Hole (TO-220)
  • Thermostat Set Point: +90°C
  • Thermostat Type: Fixed
  • Tolerance Temperature: 5°C
