7-215079-8 Receptacle, IDC, 1.27mm, 8WAY Amp - Te Connectivity

AMP - TE CONNECTIVITYSKU:7-215079-8 Bestelcode:148593

Prijs:
Actie prijs€2,48

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (3179 units)

Documenten en downloads

Omschrijving

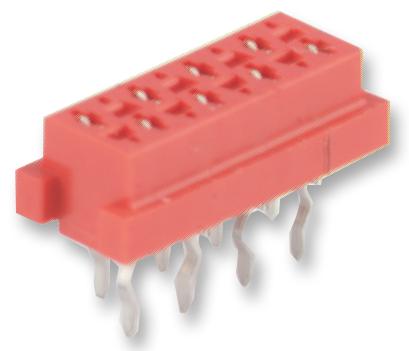

AMP - TE CONNECTIVITY - 7-215079-8 - PCB Receptacle, IDC, Board-to-Board, 1.27 mm, 2 Rows, 8 Contacts, Through Hole Mount, Micro-MaTch

  • Pitch Spacing: 1.27mm
  • No. of Contacts: 8Contacts
  • Gender: Receptacle
  • Product Range: Micro-MaTch Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Red
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current Rating: 1.5A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 1.27mm
  • Material: Thermoplastic Polyester
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Working Voltage: 100V
