Omschrijving
- Cable Shielding: Unscreened
- No. of Cores: 3Core
- Wire Gauge: 16AWG
- Conductor Area CSA: 1.5mm²
- Reel Length (Imperial): 9ft
- Reel Length (Metric): 3m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 3 x 1.5mm²
- Conductor Material: Copper
- Jacket Material: PU
- External Diameter: 6.7mm
- Voltage Rating: 500V
- Product Range: 70002 Series
- SVHC: No SVHC (15-Jan-2019)

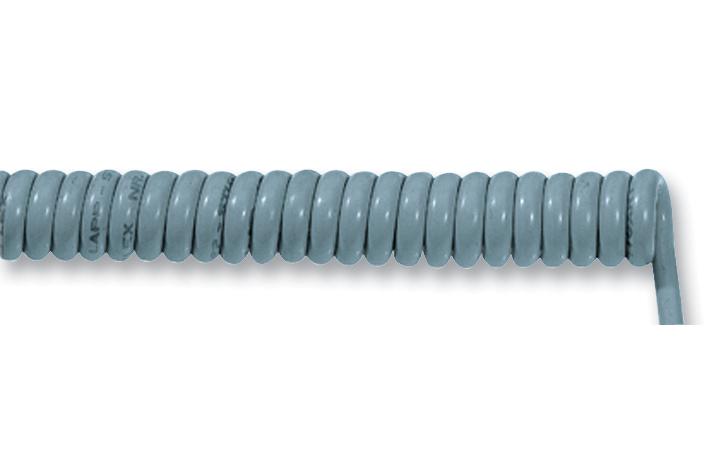

- Cable Type: Spiral Shield
- Closed Length: 1m
- Conductor Make-up: 3 G 1.5mm²
- Extended Length: 3m
- Operating Temperature Max: 50°C
- Operating Temperature Min: 5°C
- Outer Diameter: 6.7mm
- Test Voltage: 3000V
