70040101 Keypad, Storm 700, 4WAY, Grey Storm Interface

STORM INTERFACESKU:70040101 Bestelcode:9810021

Prijs:
Actie prijs€49,61

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (212 units)

Documenten en downloads

Omschrijving

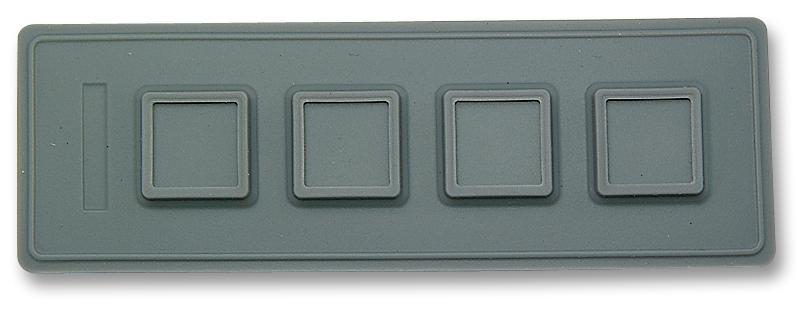

STORM INTERFACE - 70040101 - Keypad, STORM 700, 1 x 4, Matrix, Silicone Rubber, 50 mA, 24 V

  • Product Range: STORM 700 Series
  • Keypad Array: 1 x 4
  • Keypad Output: Matrix
  • Housing Material: Silicone Rubber
  • Contact Current Max: 50mA
  • Contact Voltage DC Nom: 24V
  • No. of Keys: 4
  • Panel Cutout Width: 32mm
  • Panel Cutout Height: 96mm
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: BS
  • Breakdown Voltage Vbr: 500V
  • Colour: Grey
  • Contact Current @ Contact Voltage DC Max: 50mA
  • Contact Current DC Max: 50mA
  • Contact Current Rating: 50mA
  • Contact Resistance: 100ohm
  • Contact Voltage DC Max: 24V
  • External Depth: 8mm
  • External Length / Height: 96mm
  • External Width: 32mm
  • Height: 96mm
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 50Mohm
  • Material: Silicone Rubber Surface, Anodised Aluminium Chassis
  • No. of Mechanical Operations: 2000000
  • Operating Force: 1.6N
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Time: 5ms
  • Travel: 1.5mm
