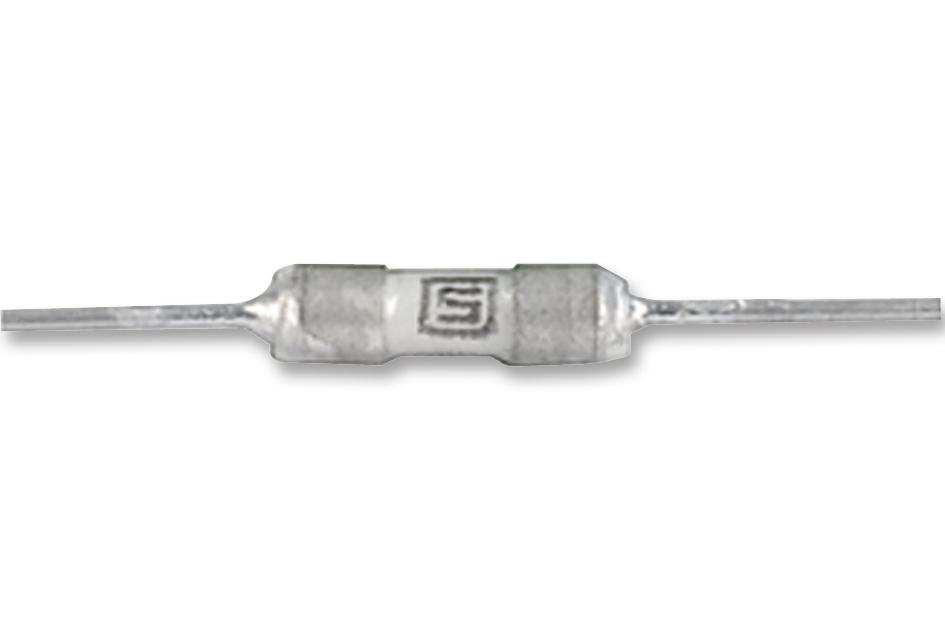

SCHURTER - 7010711013 - Fuse, PCB Leaded, 3 A, 125 VAC, 172322, 125 VDC, Fast Acting, Axial Leaded
- Fuse Current: 3A
- Voltage Rating VAC: 125VAC
- Product Range: 172322 Series
- Voltage Rating V DC: 125VDC
- Blow Characteristic: Fast Acting
- Fuse Case Style: Axial Leaded
- Breaking Capacity Current AC: 50A
- Breaking Capacity Current DC: 300A
- SVHC: Lead (15-Jan-2019)
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Body Diameter: 2.36mm
- Body Length: 8mm
- Breaking Capacity: 50A @ 125V AC, 300A @ 125V DC
- Case Material: Ceramic
- Fuse Mounting: Through Hole
- Fuse Size Imperial: 0.1" x 0.3"
- Fuse Type Blowing Characteristic: Quick Blow
- Lead Diameter: 0.62mm
- Lead Length: 39mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
