Omschrijving

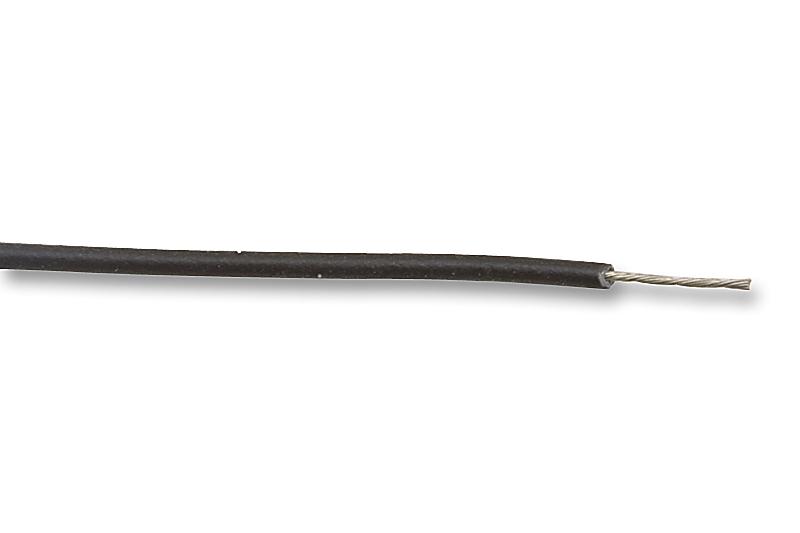

ALPHA WIRE - 7053 BK001 - Wire, Stranded, Hook Up, UL1429, MIL-W-16878E, PVC, Black, 26 AWG, 0.142 mm², 1000 ft, 304.8 m
- Jacket Material: PVC
- Jacket Colour: Black
- Wire Gauge: 26AWG
- Conductor Area CSA: 0.142mm²
- Reel Length (Imperial): 1000ft
- Reel Length (Metric): 304.8m
- No. of Max Strands x Strand Size: 7 x 0.16mm
- Voltage Rating: 150V
- Conductor Material: Copper
- External Diameter: 1.02mm
- Approval Specification: MIL-DTL-16878/1 (Type B), CSA AWM I A/B FT1, UL 1429
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 7 / 34AWG
- Current Rating: 4A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -55°C
- Outer Diameter: 1.02mm
- Primary Insulation Thickness: 0.25mm
- Voltage Rating VAC: 150V
- Wire Size: 26AWG
