712F Fan, Axial, 70X15MM, 12V, S ebm-papst

EBM-PAPSTSKU:712F Bestelcode:9600841

Prijs:
Actie prijs€61,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (255 units)

Documenten en downloads

Omschrijving

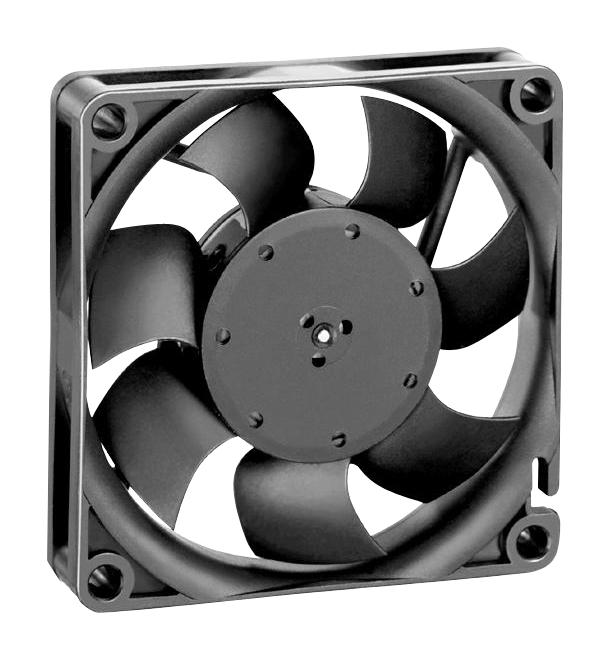

EBM-PAPST - 712F - DC Axial Fan, 12 V, Square, 70 mm, 15 mm, Sleeve Bearing, 25.9 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 70mm
  • External Depth: 15mm
  • Noise Rating: 38dBA
  • Flow Rate - Imperial: 25.9cu.ft/min
  • Flow Rate - Metric: 44m³/h
  • Bearing Type: Sleeve
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 700F Series
  • Power Rating: 1.7W
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • Current Consumption: 140mA
  • External Height: 70mm
  • External Width: 70mm
  • Fixing Centres: 61.5mm
  • Fixing Hole Diameter: 4.3mm
  • Frame Dimensions: 70mm x 70mm x 15mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 60000h
  • Panel Cutout Diameter: 68mm
  • Power Consumption: 1.7W
  • Speed Range Max: 5300rpm
  • Supply Voltage DC Max: 13.8V
  • Supply Voltage DC Min: 8V
  • Weight: 53g
