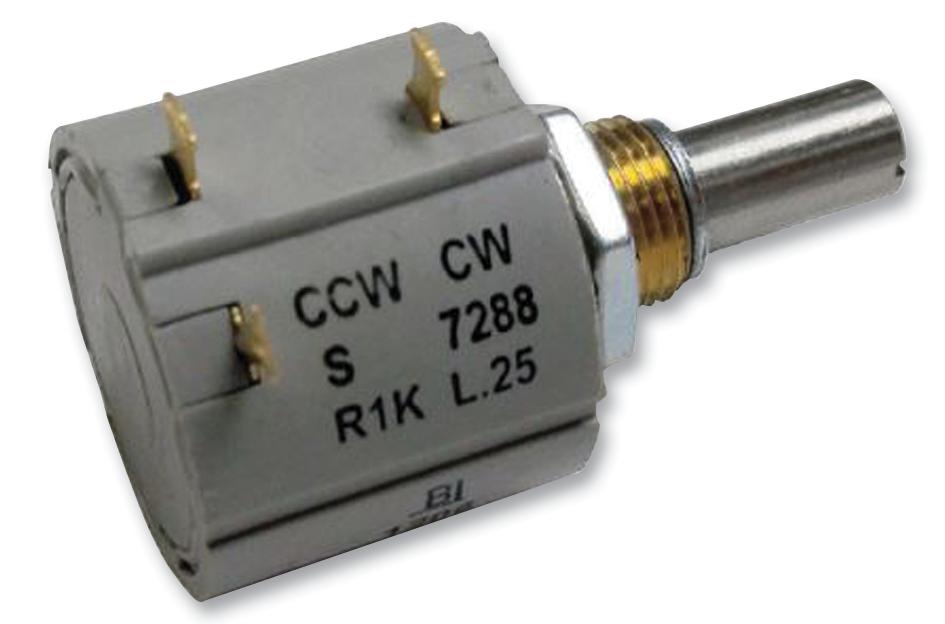

7286R1KL.25 Potentiometer, WW 7/8, 10 Turn 1K TT Electronics / Bi Technologies

TT ELECTRONICS / BI TECHNOLOGIESSKU:7286R1KL.25 Bestelcode:1520668

Prijs:
Actie prijs€73,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (67 units)

Documenten en downloads

Omschrijving

TT ELECTRONICS / BI TECHNOLOGIES - 7286R1KL.25 - Rotary Potentiometer, Wirewound, 1 kohm, 10 Turns, Linear, 2 W, ± 5%, 7286R

  • Track Resistance: 1kohm
  • No. of Turns: 10Turns
  • Track Taper: Linear
  • Power Rating: 2W
  • Resistance Tolerance: ± 5%
  • Product Range: 7286R Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 12.7mm
  • SVHC: No SVHC (20-Jun-2016)
  • Body Diameter: 22.2mm
  • Bush Thread Length: 7.93mm
  • External Length / Height: 19.1mm
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 20ppm/°C
  • Termination Type: Solder
