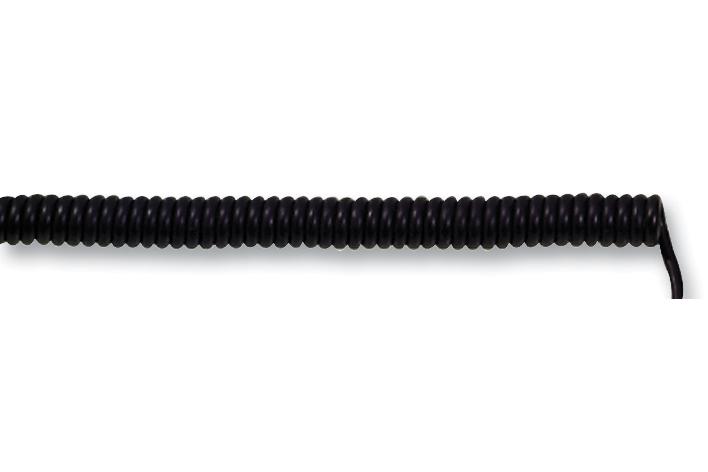

LAPP KABEL - 73220204 - Multicore Cable, Data Spiral, Screened, 2 Core, 26 AWG, 0.14 mm², 6 ft, 2 m
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 26AWG
- Conductor Area CSA: 0.14mm²
- Reel Length (Imperial): 6ft
- Reel Length (Metric): 2m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: 2 x 0.14mm²
- Conductor Material: Copper
- Jacket Material: PU
- External Diameter: 4mm
- Voltage Rating: 250V
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Cable Type: Spiral Shield
- Closed Length: 0.5m
- Conductor Make-up: 2 / 0.14mm²
- Extended Length: 2m
- Operating Temperature Max: 50°C
- Operating Temperature Min: 5°C
- Outer Diameter: 4mm
- Secondary Insulation Material: PVC
- Test Voltage: 1200V
