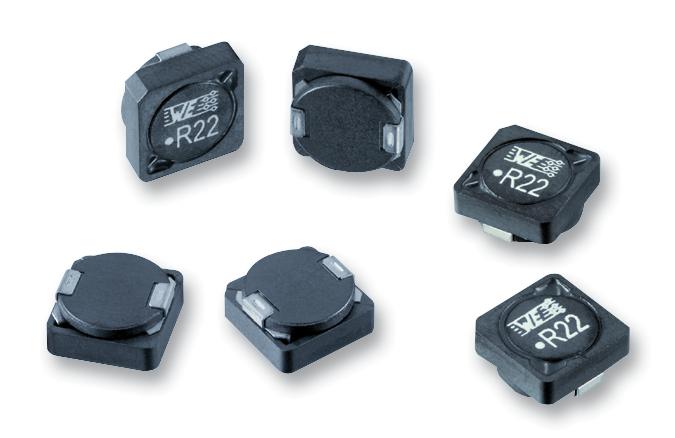

WURTH ELEKTRONIK - 7447798110 - Power Inductor (SMD), 1.1 µH, 16.5 A, Shielded, 16 A, WE-PDF, 10.2mm x 10.2mm x 6.4mm
- Inductance: 1.1µH
- RMS Current (Irms): 16.5A
- Inductor Construction: Shielded
- Saturation Current (Isat): 16A
- Product Range: WE-PDF Series
- Power Inductor Case: 10.2mm x 10.2mm x 6.4mm
- DC Resistance Max: 0.0035ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 10.2mm
- External Length / Height: 6.4mm
- External Width: 10.2mm
- Inductance Measurement Frequency: 100kHz
- No. of Pins: 2Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -40°C
- Resonant Frequency: 115MHz
- Self Resonant Frequency Min: 104MHz
