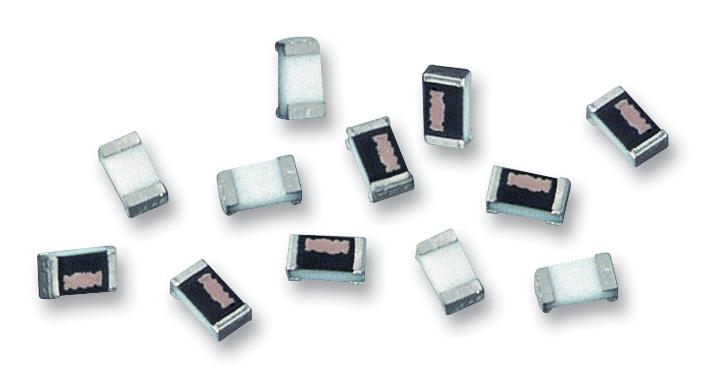

WURTH ELEKTRONIK - 744901012 - Thin Film Inductor, 1.2 nH, 0.1 ohm, 12 GHz, 700 mA, 0402 [1005 Metric], WE-TCI
- Inductance: 1.2nH
- Product Range: WE-TCI Series
- DC Current Rating: 700mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Thin Film
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 0.1nH
- Self Resonant Frequency Min: 12GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.5mm
- External Length / Height: 0.32mm
- External Width: 1mm
- Inductor Case Style: 0402 [1005 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
