750104 Relay, Safety, 3PST-NO, 240Vac, 6a PILZ

PILZSKU:750104 Bestelcode:1704486

Prijs:
Actie prijs€349,75

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1112 units)

Documenten en downloads

Omschrijving

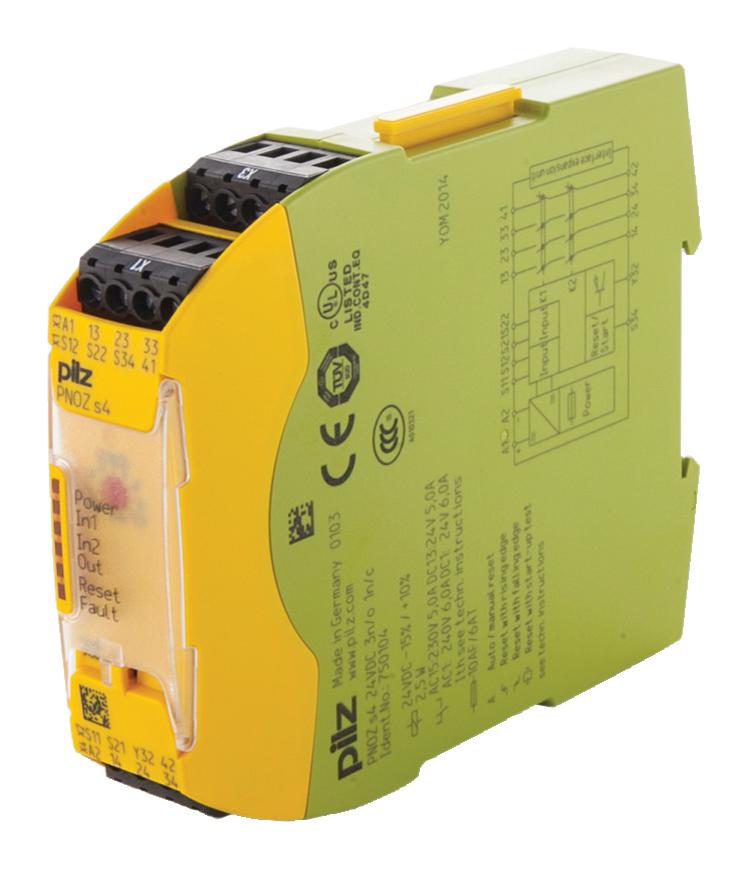

PILZ - 750104 - Safety Relay, 24 VDC, 3PST-NO, PNOZ s4, DIN Rail, 6 A, Screw

  • Coil Voltage: 24VDC
  • Contact Configuration: 3PST-NO
  • Product Range: PNOZ s4 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 6A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Copper Nickel
  • IP Rating: IP20, IP40, IP54
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals / Standards: EN 60204, EN 60947, EN 62061, IEC 61511, ISO 13849
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 8A
  • External Depth: 120mm
  • External Height: 96mm
  • External Width: 22.5mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Performance Level: PL e
  • Relay Type: Safety
  • Safety Category: Level 4
  • Safety Integrity Level: SIL3, SIL CL3
  • Type: Safety monitoring
