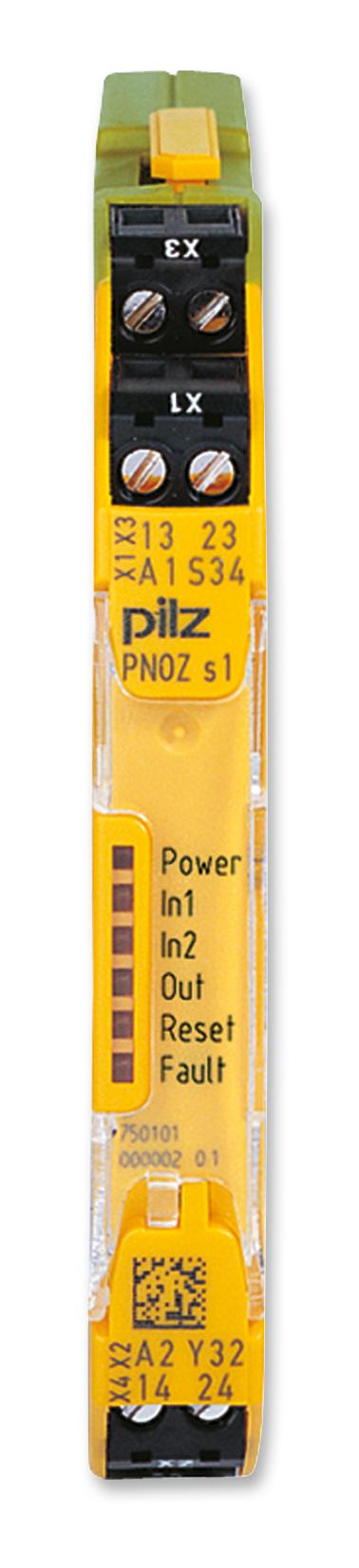

PILZ - 751101 - Safety Relay, 24 VDC, DPST-NO, PNOZ s1, DIN Rail, 3 A, Spring Clamp
- Coil Voltage: 24VDC
- Contact Configuration: DPST-NO
- Product Range: PNOZ s1 Series
- Relay Mounting: DIN Rail
- Contact Current: 3A
- Relay Terminals: Spring Clamp
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Nom: 24V
- Contact Material: Silver Tin Oxide
- IP Rating: IP20, IP40, IP54
- SVHC: No SVHC (15-Jan-2019)
- Approvals / Standards: EN 60204, EN ISO 13849
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 3A
- External Depth: 120mm
- External Height: 100mm
- External Width: 12.5mm
- Performance Level: PL c
- Safety Category: CATIII
- Safety Integrity Level: SIL2, SIL CL2
