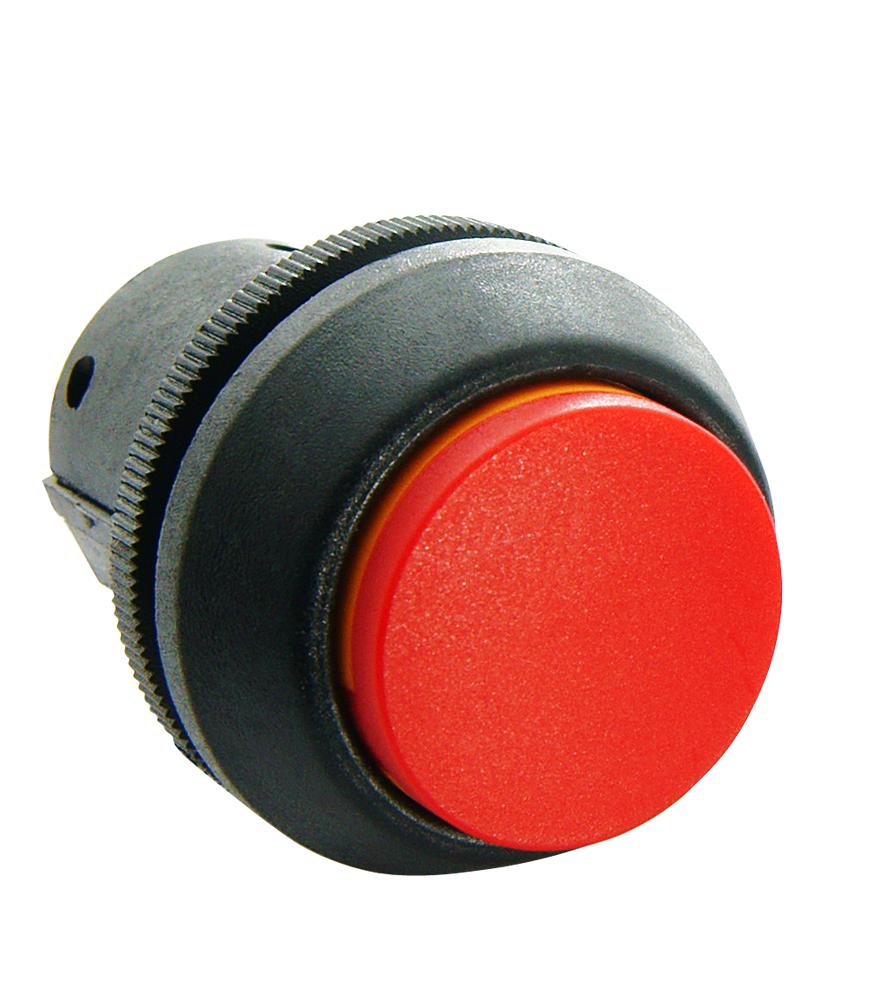

ITW SWITCHES - 76-9711/439088R - Industrial Pushbutton Switch, 76-97, 22.5 mm, SPDT-DB, Momentary, Round, Red, Yellow
- Switch Operation: Momentary
- Contact Configuration: SPDT-DB
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 10A
- Switch Terminals: Quick Connect, Solder
- Product Range: 76-97 Series
- SVHC: No SVHC (17-Dec-2015)
- Actuation Type: Dome
- Actuator / Cap Colour: Red, Yellow
- Behind Panel Depth: 27.4mm
- Bezel Diameter: 30mm
- Colour: Red / Yellow
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current AC: 10A
- Contact Current AC Max: 10A
- Contact Resistance: 25mohm
- Contact Voltage VAC: 250V
- Current Rating: 10A
- External Depth: 40.6mm
- External Length / Height: 30mm
- IP / NEMA Rating: IP67
- IP Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1Gohm
- Material: PBT
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 2000000
- Operating Force: 12N
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 22.5mm
- Panel Thickness Max: 6mm
- Pushbutton Actuator Style: Round
- Resistive Current Rating: 10A
