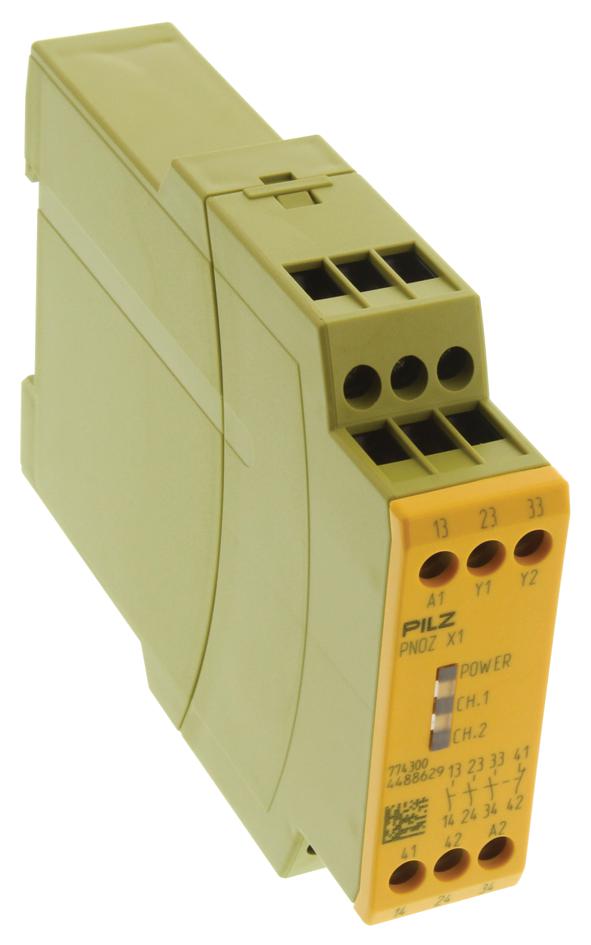

774-300 PNOZ/X1/24V Relay, Safety, 3PST-NO, 240Vac, 8A PILZ

PILZSKU:774-300 PNOZ/X1/24V Bestelcode:599736

Prijs:
Actie prijs€341,09

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (36 units)

Documenten en downloads

Omschrijving

PILZ - 774-300 PNOZ/X1/24V - Safety Relay, 24 V, 3PST-NO, PNOZ X1, DIN Rail, 8 A, Screw

  • Coil Voltage: 24V
  • Contact Configuration: 3PST-NO
  • Product Range: PNOZ X1 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 8A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Copper Nickel
  • IP Rating: IP20, IP40, IP54
  • SVHC: No SVHC (15-Jan-2019)
  • Approvals / Standards: EN 60204, EN 60947, EN 62061, IEC 61511, ISO 13849
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 8A
  • External Depth: 121mm
  • External Height: 87mm
  • External Width: 22.5mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Performance Level: PL e
  • Power Consumption: 2.5W
  • Safety Category: Level 4
  • Safety Integrity Level: SIL3, SIL CL3
