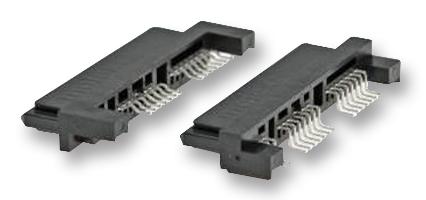

MOLEX - 78109-0001 - I/O Connector, 16 Contacts, Receptacle, SATA, Surface Mount, 78109, PCB Mount
- No. of Contacts: 16Contacts
- Gender: Receptacle
- Connector Type: SATA
- Contact Termination Type: Surface Mount
- Product Range: 78109 Series
- Connector Mounting: PCB Mount
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- SVHC: No SVHC (27-Jun-2018)
- Connector Mounting Orientation: PC Board
- Contact Resistance: 30mohm
- Contact Termination: Surface Mount Right Angle
- Current Rating: 1.5A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Material: Nylon 9T
- No. of Mating Cycles: 500
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Voltage Rating VAC: 30V
- Withstand Voltage: 500V
