8103 Cable, 8103, 3PAIR, Per M Belden

BELDENSKU:8103 Bestelcode:1218688

Prijs:
Actie prijs€11,07

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (48 units)

Documenten en downloads

Omschrijving

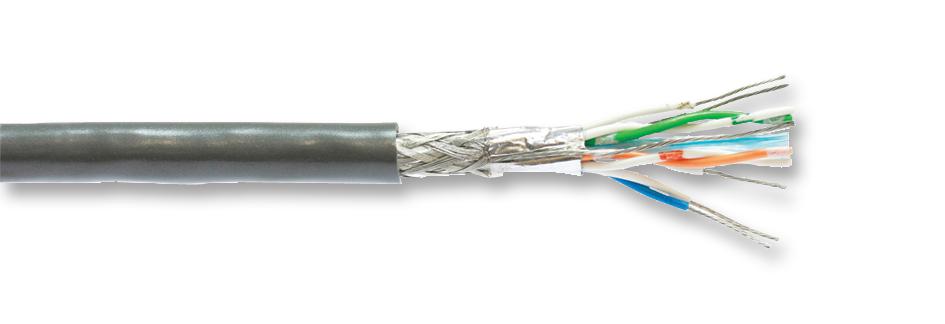

BELDEN - 8103 - Multipair Cable, Computer, Per M, Screened, 3 Pair, 24 AWG, 0.2 mm²

  • Cable Shielding: Screened
  • No. of Pairs: 3 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 30V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 7.2mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 6223C EQUIVALENT
  • Approval Bodies: UL
  • Belden Type Number: 8103
  • Cable Type: Foil + Braided Shield
  • Cable UL Style Number: UL2919
  • Complex Cable Make-Up: 6 x 7/32
  • Conductor Make-up: 7 / 32AWG
  • Conductor Plating: Tin
  • Core - Core Capacitance: 41pF/m
  • Core-Screen Capacitance: 72.2pF
  • Current Rating: 1.5A
  • Drain Wire Type: Tinned Copper
  • Impedance: 100ohm
  • No. of Cores: 6Core
  • Outer Diameter: 7.19mm
  • Primary Conductor Resistance: 78.7ohm/km
  • Resistance per Metre: 78.7ohm/km
  • Screen Type Primary: Aluminium Polyester
  • Screen Type, Secondary: Tinned copper braid
  • Secondary Insulation Colour: Black
  • Wire Size: 24AWG
