8124-26 Ribbon Cable, 26WAY, 22AWG, Per M 3M

3MSKU:8124-26 Bestelcode:1604575

Prijs:
Actie prijs€45,35

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (108 units)

Documenten en downloads

Omschrijving

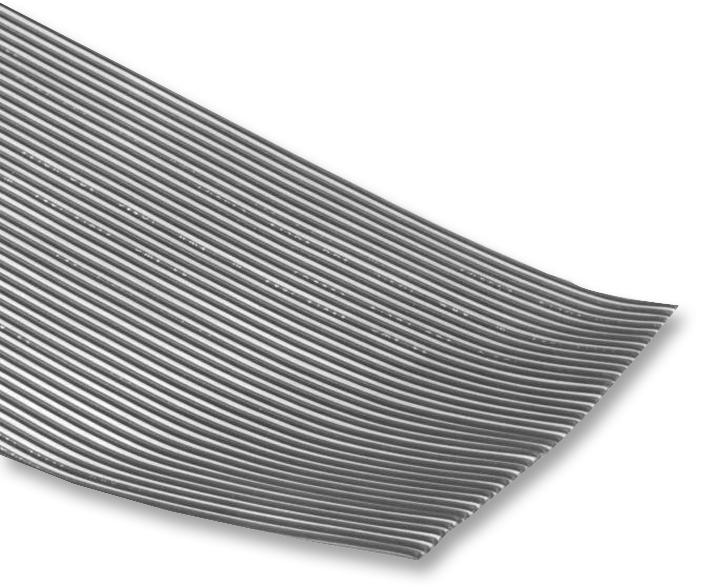

3M - 8124-26 - Ribbon Cable, Round Conductor Flat, Zippable, Unscreened, 26 Core, 22 AWG

  • Cable Shielding: Unscreened
  • No. of Cores: 26Core
  • Wire Gauge: 22AWG
  • Conductor Area CSA: -
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • Cable Width: 65.23mm
  • No. of Max Strands x Strand Size: 7 x 30AWG
  • Pitch Spacing: 2.54mm
  • Voltage Rating: 300V
  • Conductor Material: Tinned Copper
  • Jacket Material: PVC
  • Ribbon Cable Type: Flat Ribbon Cable
  • Product Range: 8124 Series
  • Cable Type: Flat (Ribbon)
  • Capacitance: 36.1pF/m
  • Colour: Grey
  • Conductor Make-up: 7 x 0.254
  • External Width: 65.23mm
  • Impedance: 119ohm
  • Inductance: 0.49µH/m
  • Insulation Resistance: 10000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -20°C
  • Velocity of Propagation (%): 78%
