8164 Cable, 8164, 4PAIR, Per M Belden

BELDENSKU:8164 Bestelcode:3854607

Prijs:
Actie prijs€34,48

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (95 units)

Documenten en downloads

Omschrijving

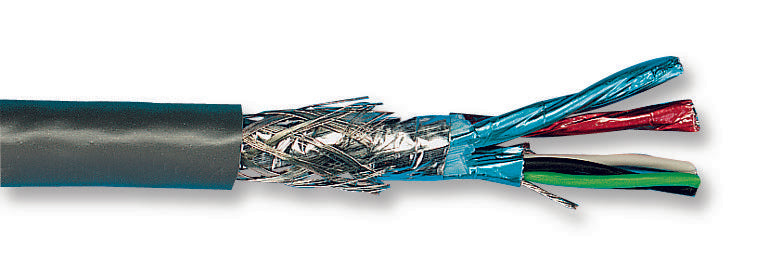

BELDEN - 8164 - Multipair Cable, Computer, Per M, Screened, 4 Pair, 24 AWG, 0.2 mm²

  • Cable Shielding: Screened
  • No. of Pairs: 4 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 9.86mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 6318 EQUIVALENT
  • Belden Type Number: 8164
  • Cable Type: Foil + Braided Shield
  • Cable UL Style Number: UL2493
  • Complex Cable Make-Up: 8 x 7/32
  • Conductor Make-up: 7 / 32AWG
  • Core-Screen Capacitance: 41pF/m
  • Current Rating: 2.5A
  • Drain Wire Type: 24 AWG
  • Flammability Rating: VW-1
  • Impedance: 100ohm
  • No. of Cores: 8Core
  • Outer Diameter: 9.86mm
  • Screen Type Primary: Aluminium / Polyester
  • Screen Type, Secondary: Aluminium/Polyester foil and tinned copper braid
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Standard: VW-1
  • Velocity of Propagation (%): 78%
  • Wire Size: 24AWG
