8209-8009 Plug, D, IDC, 9WAY 3M

3MSKU:8209-8009 Bestelcode:469373

Prijs:
Actie prijs€12,17

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (129 units)

Documenten en downloads

Omschrijving

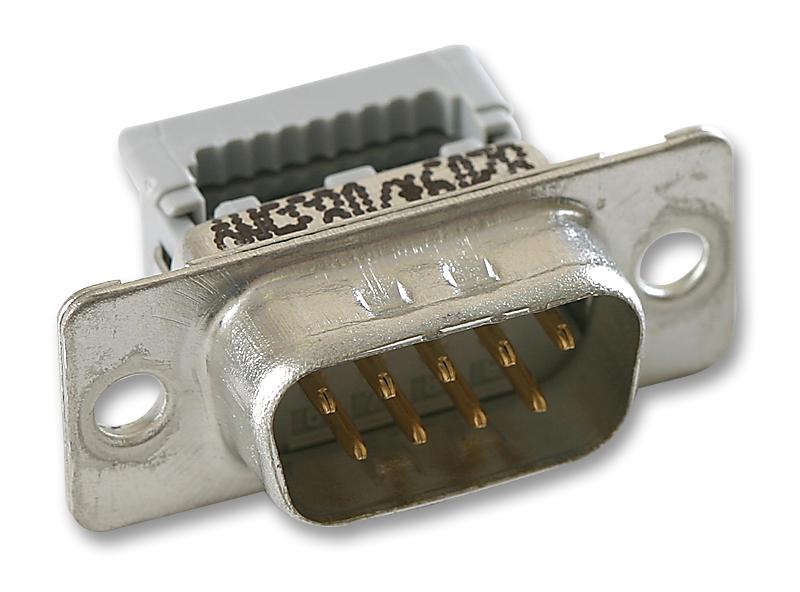

3M - 8209-8009 - D Sub Connector, DB9, Standard, Plug, 8200, 9 Contacts, DE, IDC / IDT

  • No. of Contacts: 9Contacts
  • Gender: Plug
  • Contact Termination Type: IDC / IDT
  • D Sub Shell Size: DE
  • Product Range: 8200 Series
  • Connector Body Material: Steel Body
  • Contact Material: Copper Alloy
  • Contact Plating: Gold Plated Contacts
  • Approval Bodies: CSA, UL
  • Colour: Grey
  • Connector Mounting: Cable Mount
  • Contact Current Rating: 2A
  • Contact Resistance: 20mohm
  • Contact Termination: IDC / IDT
  • D Sub Connector Type: Standard
  • Flammability Rating: UL94V-0
  • Insulator Material: PET (Polyester)
  • Material: Steel
  • No. of Mating Cycles: 200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Termination Method: IDC
  • Voltage Rating VAC: 350V
